5-axis waterjet cutting machine manufacturers

water jet cutting machine manufacturers

Product Description

Best price machine cut water jet manufacturer

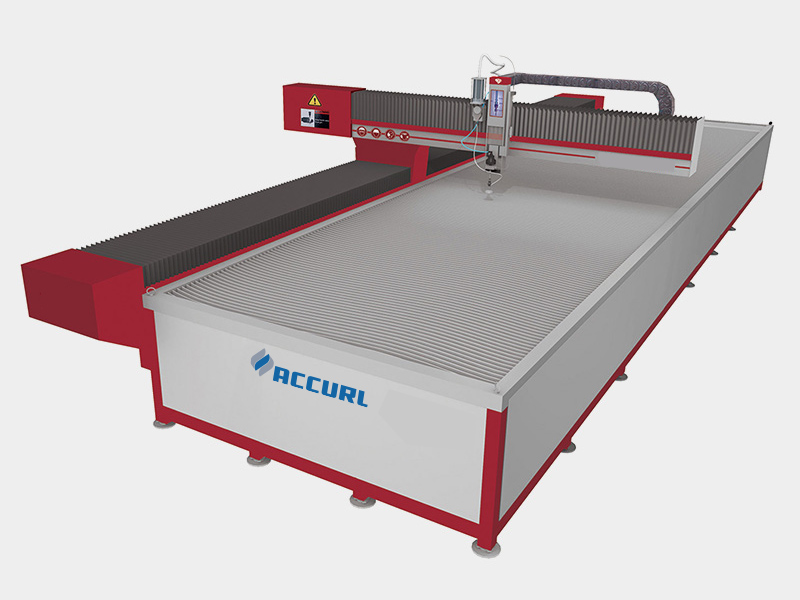

One set waterjet cutting machine including 4 parts:
1.(Bridge)Water jet cutting working table
2.Supercharger cabinet
3.CNC controller
4.Auto abrasive delivery system

Bridge feature:

1.Adopt servo drive configuration Taiwan ball screw,linear guide can achieve seamless movement, to ensure smooth operation. To ensure the smooth transmission of the whole machine.

2.Steel base, beams imported high quality seamless steel pipe, and then empty the true heat treatment, invisible change.

3.Specially reinforced bed structure, so that the cutting head does not produce vibration during high-speed operation, the machine runs smoothly, cutting speed, high precision machining.

4.The screw and guide provided by the well-known Taiwan manufacturers, X, Y-axis is the original oil-immersed screw rail lubrication, plus a waterprooof, dust-proof structure to ensure that the machining accuracy of CNC cutting platform, and maximize the service life of the screw guide.

5.Cutting head is equipped with reliable pneumatic high-pressure water switch control device, improve production efficiency.

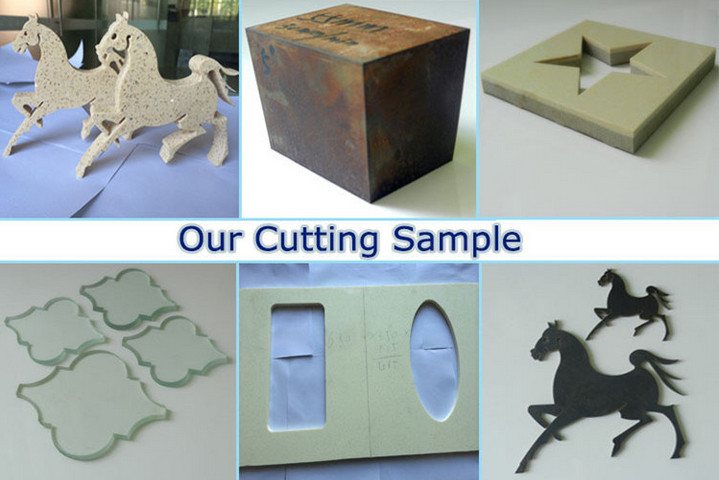

Cutting Material And Thickness

Stainless steel:80mm, Plastic and foam:300mm
Aluminum:120mm, Glass:120mm
Ceramic:80mm, Marble:80mm

Technl Data
Cutting table size3100*2100mm
CNC ControllerStep System / AC Servo System


Turbocharger parameters
Maximum pressure450Mpa
Normal operating pressure350-380Mpa
Main motor power37KW
Oil pumpVarialbe
High-pressure cylinderImported
Inlet valveImported
Ceramic rodImported
AccumulatorSingle taper
Power supply415/380/220V AC 3P

Basic Info

Model NO.: RC3020(Bridge)
Process Usage: Metal-Cutting CNC Machine Tools
Control Method: Open-Loop Control
Performance Classification: CNC Waterjet Cutting Machine
Condition: New
Cutting Stoke: 3000*2000mm
Servo Control: Yaskawa
Accuracy: +/-0.1mm
Traverse Speed: 6500 / 1500 mm/Min
Power Supply: 220V / 380VAC,50Hz
Specification: CE
HS Code: 84569020
Application: Glass,Stone,Metal,Mosaic, Marble,Ets
Movement Method: Linear Control
Numerical Control: CNC/MNC
Certification: CE
Model: RC3020
Structure: Bridge
Intensifier: Made in USA
Repeatability: 0.05mm
Maximum Pressure: 450MPa
Trademark: ACCURL
Origin:An,hui China
