1.Imported motion parts
2.High precision cutting efficiency
3.cutting head can be manual 60 degree cutting
4. Waterproof and Dustproof ,internal lubrication system
5. Laser cross line positioning system(optional)
Teenking CNC Machinery CO. Ltd is located in Foshan, Guangdong, China. Teenking is an ISO9001 factory with CE for the waterjet cutting machine. We are professional in making waterjet cutting machine over than 10 years.

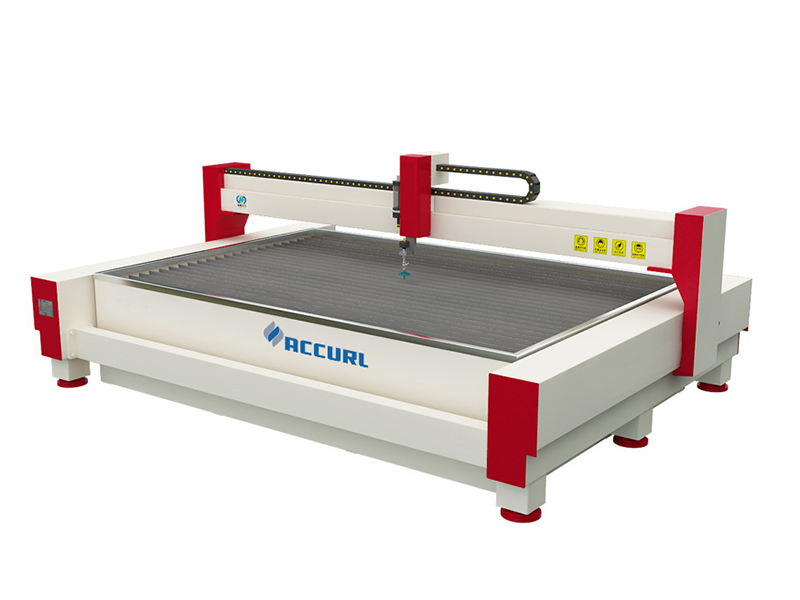

ACCURL-Trump50-G2060 machine has maxi 420mpa pressure pump with Maxi 2000*6000mm gantry cutting table. The cutting accurency can be up to ± 0.08mm.
ACCURL Waterjet has the following advantages:
1, the cutting accurancy, we are ± 0.08mm,
2, all stainless steel covers for the whole machine,
3, Low/high pressure function, easy for fragile materials cutting
Low/High pressure shifting by programmed piercing control, especially used for breakable material.
4, Special software for Teenking--includes different materails cutting parameter
Smart control softwear with built-in dynamic ideal cut speed for different material and thickness, from metal to stone, marble, granite, glass...
5, wireless keboard and mouse
Wireless remote-control keboard work with laser pointer system, absolute easily and quickly locating of cutting head.
6, cutting head can be manual 60 degrees cutting
Cutting head adjustable tilt ± 60 degrees in X (or X&Y) dirrection, available for chamfering.
7, laser pointer for easy positioning cutting head
8, Siemens Motor
9, electricial components: CE/CCC/UL wiring, Omron, Siemense & Schneider element.
10. A mesh/grid in cutting table esay for small parts collection
Work area ( X, Y )
It is a G2060 cutting table
TK-Trump G series(G=Gantry type)
The max travel of X axis: 2050 mm,
The max travel of Y axis: 6050 mm
The max travel of Z axis: 200 mm(8")
X = Bridge;
Y = Base
The max range of process(available cutting area): 2000X6000mm
Motion speed in each axis
0-10m/min(600ipm) in X&Y axis, 0-1.5m/min(60ipm) in Z axis
Nut running design, reduce the drag index of rotation, support a faster movement.
Tolerance in movement axis
X axis ± 0.05 mm (. 002"), Y axis± 0.08 mm (± 0.003")
± 0.025 mm per 300 mm (± 0.001" per ft)
± 0.025 mm (± 0.001")
Max cutting tolerance
± 0.08mm(± 0.002")
The max speed of process
10 m/min (600 ipm)
Water-dust proof system
All the motion part is protecting by water-dust proof belt system
Auto- bridge balance adjust
Available in bridge-type cutting table
Power break protect
Complete solution for the power break protect during cutting
Sallage removal system
(optional) suitable design for sallage removal system
Auto-lubricate system (control by CNC controller).
Auto accurate garnet feeder
Accurate Volume Control Garnet Feeder(controlled by CNC controller)-patent
Screw straighten system
Too long screw in protecting by screw straightening system- patent
Drive mode in each axis
CNC drive by servo motor system and ball-screw, linear-guideway in X, Y&Z axis.
Return Water Prevent Valve
Return water will come out from this valve, avoid water upstream to the accurate garnet feeder.
Easy fix tool
Work sheet can be easy to fix by special and useful tools.
Remote control ± X, ± Y, ± Z and program start, stop, pause by wireless keyboard.
Red cross laser light for positioning X, Y easy
High pressure piping
Ø 6.35X9 meters & Ø 9.53X1.6 meters high-pressure tube from USA.
Strong flame support in favor of smooth cut.
"ACCU" high efficiency cutting head: 15% faster cutting, available in ± 600 tilting cut!
TKW Trump Line 50/420 intensifierhigh-pressure pumpsystem
FLOW TYPE 50Hp INTENSIFIER SIEMENS OIL PUMP SIEMENS STARTER
Type of intensifier
FLOW-ESL type 50hp intensifier( Enhanced & assembly by TKW).
Origin of intensifier:
All major elements of intensifier are from USA(Accustream,Sunny, Compact...)
Check Valve Outlet Body(USA)
SIEMENS oil pump motor 37kW (50 hp)
SIEMENS Star-delta contactors
H.P Control System / Language
SIEMENS PLC control /English
Max. Circuit Breaker at 380V/50Hz
Schneider 160 AMain Switch.
Thermal Overload Relay
Intermediate Relay / 24VDC Power
Omron / MINGWEI
LY-Rexroth Type: Auto-Variable oil pump
Max high pressure
Stable work pressure range
25~380 MPa (3500~55,000 psi)
Nominal Power Rate
37kW(50hp) 380V/50Hz 80A
Oil-/ Water Heat Exchanger
High efficiencyheat exchanger. or upgrade to fan cooling system(optional)
Max orifice size:
Max Water Flow Rate
Pressure control system
Dual pressure Auto-control (low/high range 70~380MPa)
Inlet Water Pressure range:
pressure after Booster
Inlet water attenuator capacity
Inlet water Filter assembly
5μm, 1μm, 0.1μm 3 filters and resin softened.
Request for water treatment
Request for clean and softened inlet water.
Max. Nominal Stroke Rate
H.P A ttenu ator
1.30Lmaintenance free attenuator
Max. pressure fluctuation
Max. high-pressure limit
Outlet H.P tubing
3/8" H.P tubing (from USA), 1/4"H.P tubing connect H.P and nozzle(from USA)
Digital High-Pressure Display
Digital Temperature Display
Inlet Water Pressure Display
Mechanical Pressure Gauge
Water Pressure After Filter & Booster
Mechanical Pressure Gauge
SIEMENS PLC :
Hydraulic pressure overflow.
Over oil temperature
Over high pressure
Too low inlet water pressure
Too low air pressure
LED Trouble shooting display
Motor ON/OFF Button (Schneider)
H.P ON/OFF Button (Schneider)
Local/Remote Button (Schneider)
technical data of Hydraulic System
Max. Quantity of Orifices at 3.800 bar
Oil Pump brand & model
LyYuan-Rexroth Mod: A10V
Ødia in mm
Ødia in inch
Quantity of Orifices
All Hydraulic Valves
Max. Flow Rate at 1440rpm
156 L/min, 71cc/rpm
Max Power Consumption:
1:20(oil : water)
Max oil pressure
Max rotation speed
