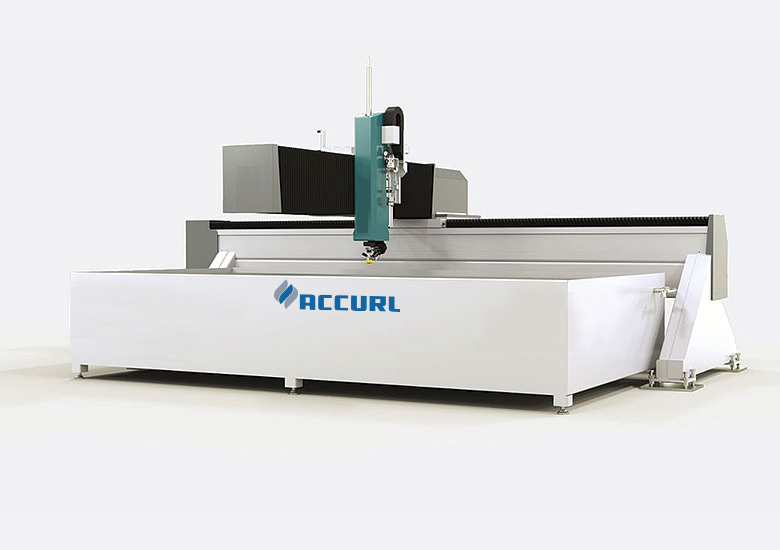

high speed 3 axis granite water jet cutting machine cnc controlled 4000 x 2000mm

granite water jet cutting machine

Detailed Product Description


Model Number:MAX-WJ-1515L CNC Water Jet Cutting MachineEffective Cutting Area(Length):1500mm
Effective Cutting Area(width):1500mmCutting Positioning Accuracy:±0.5mm/m
CNC Controller:AI, DST, DWG, DXF, DXP, LASKeywords:Water Jet Cutting Machine 4000x2000mm

Water Jet Cutting Machine 4000x2000mm CNC 3axis stone granite waterjet cutter machine jet cutting of metals

Product Description

The ACCURL abrasive waterjet machine is a high-pressure waterjet machine that utilizes straight water cutting or abrasive waterjet cutting to cut several types of material. The ACCURL Water-Jet is a heavy-duty precision, ground ball screw designed system for maximum precision and rigidity.

Perfect Waterjet Cutting:

ACCURL® Waterjet machining is achieved by forcing a large volume of water under high pressure through a small orifice in the cutting nozzle. The accelerated steam of water leaving the nozzle impacts the material and starts the cutting process. Kerf from the accelerated stream of water is extremely narrow. This pressure is then concentrated in a small area on the material which starts to erode the material. Softer materials can be cut with water pressure. Harder materials require the use of an abrasive feed system, such as metal cutting. The abrasive is introduced into the high pressure water stream, which then starts the erosion of the harder materials. Although waterjet machining is the slowest cutting process, there are definite advantages that outweigh its' pace.

Main Features

1. Can be transfer the drawing to cutting quickly

2. Quick position-some or few fixing equipments

3. Hing accuracy-reduce the recutting

4. Quicker cutting speed

5. In no need of fabrication for the working parts

6. Safer for the operator and circumstance osteam,dust,smog etc

7. Cool cutting-no heat will be prouduced

8. Clear processing,in no need of clear the working parts again

9. Good cutting finishes-in no need of trimina the cutting finishes again

10. Narrow cutting gap

11. Quick calibration and easier versatility way of cutting. It has been proved that it can be used in mass production in the ideal system

12. Fit for CAD/CAW software

System

Hp System: WJPOWER-400(Semi Imported Configuration)

Max.Pressure: 400Mpa

Max.Flowrate: 3.7L/min

Electrical Power:30KW/40HP

Voltage: 220V~480V/50,60HZ.3PH

Some Key Parts Adopt Imported Parts

Advantages of CNC controller

1. Industrial control computer: high reliability, convenient man-machine dialogue, real-time control of the cutting process

2. CNC control,19 inch LCD. facilitate operators to observe and reduce visual fatigue.

3. Appropriate height of operating desk, reasonable display angle, and 180-degree horizontal rotation for easy operation and viewing

4. Replace the relay with PLC, with a computer communications, flexible control

5. Professional waterjet cutting software, easy to operate , easy to learn, and practical.

6. DXF file ,can use AUTOCAD to produce DXF file

7. IPC and the professional software based on windows XP/7

The advantages of water jet cutting machine

1. Can be transfer the drawings to cutting quickly

2. Quick position: some or few fixing quipments

3. High accuracy: reduce the recutting

4. Quicker cutting speed

5. In no need of fabrication for the working parts

6. Safer for the operator and circumstance: no steam, dust, smog, etc

7. Cool cutting: no heat will be produced

8. Clear processing: in no need of clear the working parts again

9. Good cutting finishes: in no need of rework the cutting finishes again.

10. Narrow cutting gap

11. Quick calibration and easier versatility way of cutting. It has been proved that it can be used in mass production in the ideal system

12. Fit for CAD/CAM software

13. Waterjet cutting machine can cut almost all the materials

Specification

ModelMAX-WJ-4020L
working tablemm3000 x 1500
X-axisstroke20003000
Speed0~150~15
Y-axisstroke10001500
Speed0~150~15
Z-axisstroke150-180150-180
Speed0~120~12
Control accuracymm± 0.01
Positioning accuracymm± 0.02
High Pressure SystemMax Pressure380380
Power37(50HP)37(50HP)
Total electric powerKW38
Max load of working tableKgs1000
Format supportedAI, PLT, DXF, etc
Machine weightKgs5650
Outside dimensionmm4050x2250x1850
Product NameWater Jet Cutting Machine 4000x2000mm
