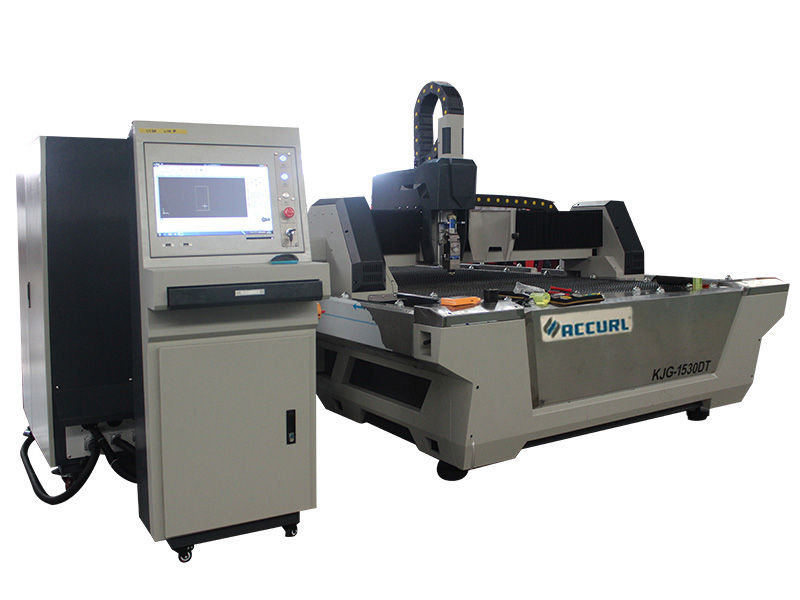

500w laser industry use fiber laser cutting machine

uses of laser cutting machine

Technology parameter


ModelHSGQ-3015-500WHSGQ-3015-800W
Laser wavelength1080mm1080mm
lasing midiumYVO4YVO4
min line width<0.15mm<0.15mm
drivedual drivedual drive
max travel speed60m/min60m/min
max working area3000*1500mm3000*1500mm
Z axis120mm120mm
carbon steel cutting thickness6mm8mm
voltage380V/50HZ380V/50HZ

Fiber laser machine collocates with the advanced laser generator which emits laser beam with high energy density. The laser beam is focused on the surface of workpiece as an ultrafine focus facula and causes the irradiated area instantly melted and vaporized. The CNC system automatically controls the laser cutter to achieve the cutting mission.

The laser equipment is constituted with the advanced laser technology, CNC technology and mechanical technology. It's applicable to processing metal sheets such as stainless steel, carbon steel, copper, aluminum and metal pipes. It has been widely used in plate processing, machinery manufacturing, and precision processing, etc.

Advantages of Fiber Laser Cutting Machine


1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.

2) High cutting speed: Cutting speed is more than 45m/min

3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency

5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;

6) Easy operations: fiber line transmission, no adjustment of optical path;

7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements
8)Dual drive:different the traditional one drive machine,dual drive power is more large,speed is more fast and high procession

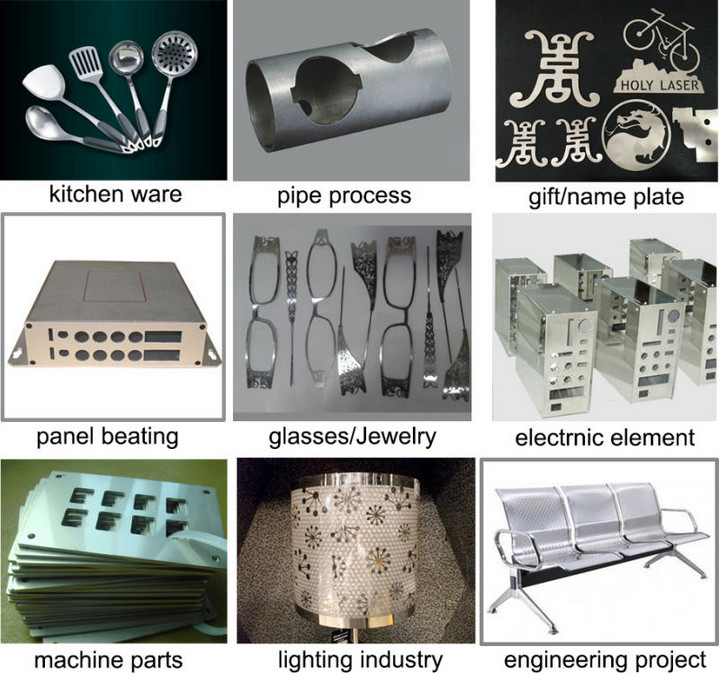

Applied materials of Fiber Laser Cutting Machine:

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applied Industries of Fiber Laser Cutting Machine:

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Technical Data of Fiber Laser Cutting Machine


Laser Power500W/800W/1000W/2000W
Laser SourceMAX/IPG/Rayco/SPI(It's option)
Laser TypeFiber Laser
Laser TechnologyGermany Technology
XYZ Working area1500*3000 mm*130mm
Max. Cutting Thickness (Carbon Steel)6 -8mm
Max. Cutting Speed0-45 Meters / Min (up to materials)
Laser wavelength1080nm
Minimum line width≤0.15mm
Location precision≤±0.05mm
Re-location precision±0.02mm
Max. moving speed60m/min
Supporting FormatPLT, DXF, BMP, AI
Power demand380V/50Hz
Cooling WayWater Cooling
Worktable max. load1000KGS
Transmission MethodBall Screw Transmission
Table-driven systemJapanese Imported Panasonic Servo Motor & Driving System
Focus MethodFollowing and Automatic Adjust Focus
Control MethodOffline Movement Control
Control softwareCypcut  Laser Cutting Software

Basic Info


Laser Technology: Laser Control Fault Cutting
Laser Power: 500W/800W
Laser Wavelength: 1080mm
Working Size: 3000*1500mm
Lasing Midium: Yvo4
Min Line Width: Less 0.15mm
Max Travel Speed: 60m/Min
X Axis Route: 3000mm
Y Axis Route: 1500mm
Z Axis Route: 120mm
Carbon Steel Cutting Thickness: 6mm/8mm
Trademark: ACCURL
Transport Package: Continer
Specification: FCC, SGS, FDA, CE, ISO
Origin: Anhui, China
HS Code: 8456100090
