laser cutting machine manufacturers

Technology parameter


aser wavelength1080mm1080mm
lasing midiumYVO4YVO4
min line width<0.15mm<0.15mm
drivedual drivedual drive
max travel speed60m/min60m/min
max working area3000*1500mm3000*1500mm
Z axis120mm120mm
carbon steel cutting thickness6mm8mm
voltage380V/50HZ380V/50HZ

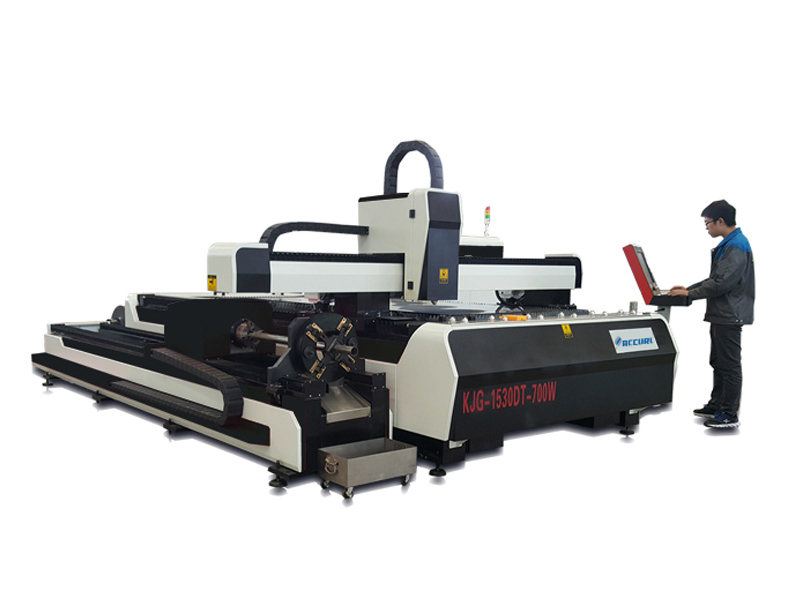

Fiber laser machine collocates with the advanced laser generator which emits laser beam with high energy density. The laser beam is focused on the surface of workpiece as an ultrafine focus facula and causes the irradiated area instantly melted and vaporized. The CNC system automatically controls the laser cutter to achieve the cutting mission.

The laser equipment is constituted with the advanced laser technology, CNC technology and mechanical technology. It's applicable to processing metal sheets such as stainless steel, carbon steel, copper, aluminum and metal pipes. It has been widely used in plate processing, machinery manufacturing, and precision processing, etc.

Advantages of Fiber Laser Cutting Machine:


1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 45m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements
8)Dual drive:different the traditional one drive machine,dual drive power is more large,speed is more fast and high procession
Applied materials of Fiber Laser Cutting Machine:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Applied Industries of Fiber Laser Cutting Machine:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Technical Data of Fiber Laser Cutting Machine:


Laser Power 500W/800W/1000W/2000W
Laser Source MAX/IPG/Rayco/SPI(It's option)
Laser Type Fiber Laser
Laser Technology Germany Technology
XYZ Working area 1500*3000 mm*130mm
Max. Cutting Thickness (Carbon Steel) 6 -8mm
Max. Cutting Speed 0-45 Meters / Min (up to materials)
Laser wavelength 1080nm
Minimum line width ≤0.15mm
Location precision ≤±0.05mm
Re-location precision ±0.02mm
Max. moving speed 60m/min
Supporting Format PLT, DXF, BMP, AI
Power demand 380V/50Hz
Cooling Way Water Cooling
Worktable max. load 1000KGS
Transmission Method Ball Screw Transmission
Table-driven system Japanese Imported Panasonic Servo Motor & Driving System
Focus Method Following and Automatic Adjust Focus
Control Method Offline Movement Control
Control software Cypcut  Laser Cutting Software
