500W metal pipe fiber laser cutting machine

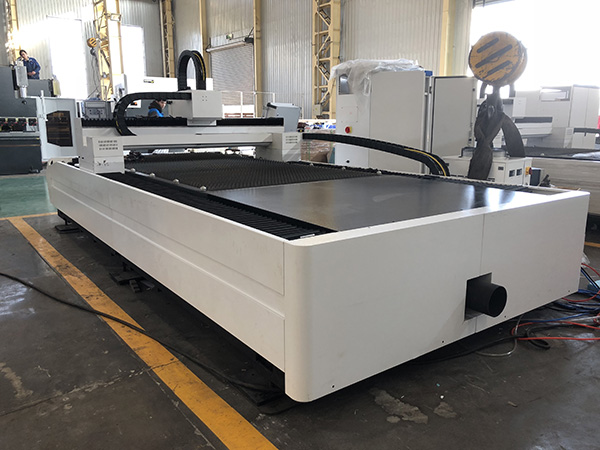

Factory Made 300w 500w 600w 1000w

Product Application


Accurl fiber laser cutting machine is equipped with fiber laser which is energy-efficient, environment-friendly as well as highly efficient.
Recently, fiber laser medium is the most popular and stable laser source internationally. The laser beam of high energy density is focused on the surface of the material. Then the area melts, burns, vaporizes away, and the slag is blown away by a jet of gas, leaving a smooth seam with a high-quality surface finish made by a relative motion between laser light beam and preset routine for the material. That is to say, the automatic laser cutting can be realized when moving the light spot position by the mechanical systems controlled by CNC. KJG fiber laser cutting machine is high-tech equipment integrated with laser technology, CNC technology and mechanical technology.

SPECIFICATIONS FOR CNC Laser Cutting Machine
Accurl 500W Fiber Laser
Laser Power
Watt
500W
Laser Brand
IPG
Made in USA
Cutting Area
mm
1500x3000mm
Accurl 800W Fiber Laser
Laser Power
Watt
800W
Laser Brand
IPG
Made in USA
Cutting Area
mm
1500x3000mm

Accurl 1000W Fiber Laser

Laser Power
Watt
1000W
Laser Brand
IPG
Made in USA
Cutting Area
mm
1500x3000mm

Main Features


1) The Accurl laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and perfectly cut 6mm mild steel,120 holes can be cut within one minute.

2) 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.

3) Using laser electrical cabinet integration design, cover small area , save space, minimalist design.

4) Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.

5) Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper.

Model No.

KJG-150300JH

KJG-150300JH

XJGC-150300JH

Laser Type
IPG / Coherent / Raycus
Laser Power

500W

1000W

2000W

Cutting Area
                                                          1500mmX3000mm
Working Table Structure

Fixed working table

Pallet Changer

Control System

PMAC full-closed loop servo control

Positioning Accuracy

                                                                    ±0.04mm

Driving Mode

                                                       Double gear rack driving

Idle/Processing Speed
72m/min / 36m/min
                      100m/min / 30m/min
Laser Head
                                            Precitec / Golden Laser / Laser Mech
Cooling System
                                          Dual temperature dual control water chiller
Protection System
            Open Type
                                  Enclosure protection
Format Supported
                                                 PLT, DXF, BMP, AI, DST, DWG, etc.
Power Supply
                                                                  380V / 220V
Total Power
          7KW / 11KW
                              17KW / 8~22KW
Floor Space
     5.6m x 3.2m
                                        9m X 4m

Our Service


Pre-Sales Service

* Technical solution.

* Online video authentication machine work.

* Cutting samples provided by DHL.

After-Sales Service

* Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it’s necessary, Buyer should send regular his technical staff to Supplier for technical training.

Quick Details


Application: Laser Cutting
Condition: New
Laser Type:Fiber Laser
Applicable Material: Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Thickness:6mm
Cutting Area: 1500*3000mm
Cutting Speed:72m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: cypcut controller
Graphic Format Supported: AI, DST, DWG, DXF, DXP, LAS
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: KJG-150300DT with 800W
Certification: CE, ISO, SGS, UL
After-sales Service Provided: Engineers available to service machinery overseas
Laser type: IPG fiber laser generator from USA
Laser wavelength: 1070nm
Laser power output rating: 800W
X-axis travel: 1500mm
Y-axis travel: 3000mm
Working table:Open design, fixed table
Driving mode: Double rack and pinion driving system
Format supported:PLT, DXF, AI etc
Position accuracy: 0.05mm
Total Power consumption: 10KW
