Applicable materials and industry
Industry: it's designed for metal sheet cutting and processing, such as plate processing, machinery manufacuring and precision processing, etc.
Materials: stainless steel, carbon steel, aluminum, brass and pipes, etc. Industry: it's designed for metal sheet cutting and processing, such as plate processing, machinery manufacuring and precision processing, etc.
Materials: stainless steel, carbon steel, aluminum, brass and pipes, etc.

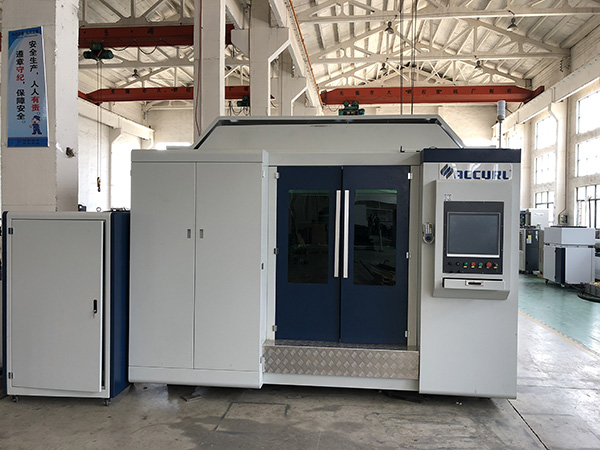

|1||Machine Name||ART-1530F Fiber laser cutting machine|
|2||Laser machine cutting area||1500x3000mm|
|3||Cutting thickness||0.2-6mm stainless steel/0.2-12mm steel|
|5||laser device||Raycus / IPG|
|6||Laser wave length||1080nm|
|7||Transmission system||Imported ball screw /|
|8||X.Y axis location accuracy||±0.01mm|
|9||X.Y axis repeat location accuracy||±0.01mm|
|10||X.Y axis max moving speed||30m/min|
|11||Max cutting speed||1--16m/min|
|12||Min cutting line with||0.02mm|
|13||Machine area size||4.0x2.2x1.5m|
|14||Water chiller||Constant temperature water chiller|
|17||Red dot position||Yes|
1. The double ball screw closedloop system and imported open CNC system enable high processing accuracy and high working efficiency during high speed cutting.
2. Standard collocation of 500W fiber laser generator and optional 400W-2000W fiber laser generator ensures low operation and maintenance cost.
3. Open structure is easy and convenient for material loading and unloading.
4. Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
5. Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials.
6. Easy operation and low cost.
7. Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting.
1, High speed, high precision, high efficiency and low cost
2, Easy on operation, fiber optical path, without tediously adjustment on optical path
3, Compact structure, good sealing, strongly adaptable to changes in the environment.
4, With the perfect automatic nesting system which can save time, save the materials, the sheet utilization ratio up to 95%
#. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#. Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
#. 18 months guarantee of the whole machine.
#. Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
#. Lifetime maintenance free of charge.
#. We will provide the consumable parts at an agency price when you need replacement.
#. Machine has been adjusted before delivery.
#. Our staff can be sent to your company to install or adjust if necessary
Application: Laser Cutting
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0-12mm
Cutting Area: 1500*3000mm
Cutting Speed: 200mm/s
CNC or Not: Yes
Cooling Mode: Water Cooling
Graphic Format Supported: AI, BMP, DST, DWG, DXF, LAS, PLT
Certification: CE, GS, ISO, SGS, UL
After-sales Service Provided: Engineers available to service machinery overseas
Name: fiber laser cutting machine
Cutting thickness: 0.2-6mm stainless steel/0.2-12mm steel
laser device: Raycus/IPG
Laser power: 500w/700w/1000w/1500w/3000w
Laser wave length: 1080nm
Transmission system: Imported ball screw
X.Y axis location accuracy: ±0.01mm
X.Y axis repeat location accuracy:±0.01mm
X.Y axis max moving speedg humidity:30m/min
Max cutting speed: 1--16m/min
