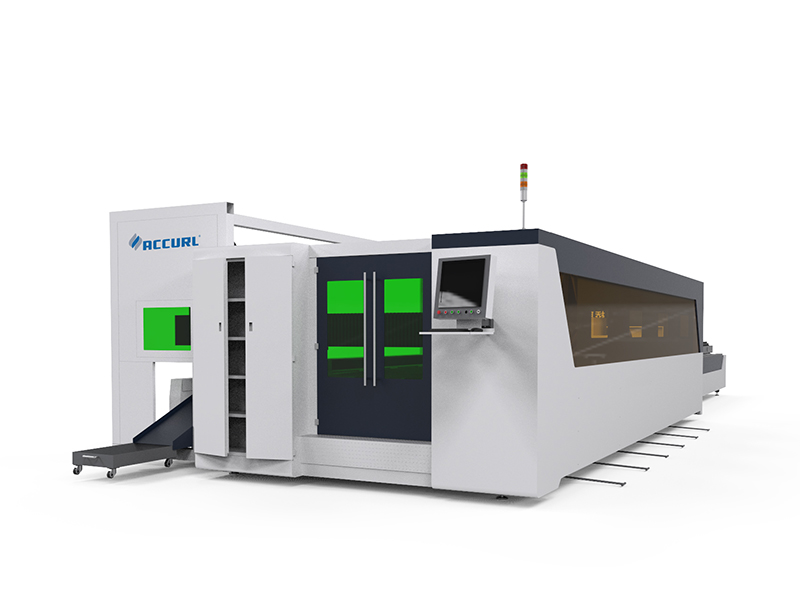

500w 1000w sheet metal tube fiber laser cutting machine for sale

tube laser for sale

Product Description


This type of Fiber Laser Cutting Machine is designed for cutting both metal sheet and tubes. Adopted the Taiwan famous screw guide, Yaskawa servo and drive. And the pipe diameter can up to 200mm. It can be customized according to different demands. The unique design with rotary auxiliaries can avoid the technical problems for cutting pipe and sheet at the same time.

Main Features of Tube Fiber Laser Cutting Machine

1. 500w, 800w, 1000w, 1500w, 2000w, 2500w IPG Maxphotonics Raycus fiber optic laser optional
2. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials etc
3. China professional manufactuers, best price and quality, can meet CE & FDA & ISO certificates
4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm
5. Metal sheet, round and square tube pipe fiber laser cutting machine, 1500*3000mm
6. Simple structure, very easy to install and maintain

Specification of Tube Fiber Laser Cutting Machine

FIBER LASER CUTTING MACHINE
Machine model
MKC-3015P
Cutting area
3000*1500mm
Laser model
Fiber laser - 500W /800W /1000W /1500W/2500W
Laser wavelength
1,070-1,080nm
Electro-light converting efficiency
25-30%
Max cutting thickness
0-20mm (depends on machin power and materials)
Pipe cutting diameter
1-200mm
Width of incision
0.1-0.2mm
X/Y/Z stroke
3025mm/1525mm/100mm
Position accuracy
±0.03mm
Repeat position accuracy
±0.05mm
Max. operating speed
60000mm/min
CNC control system
CypCut
Computer monitor
21.5"LCD
Max. acceleration
0.8G
Power supply requirement
380V 50/60Hz (can be customized)
Working table max bearing
Approximate 800kg

Product Application of Tube Fiber Laser Cutting Machine

Professional used to cut thin sheet metal, in a variety of high quality carbon steel sheet cutting, can also be cutting stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate, round and square tubes, and other metal.

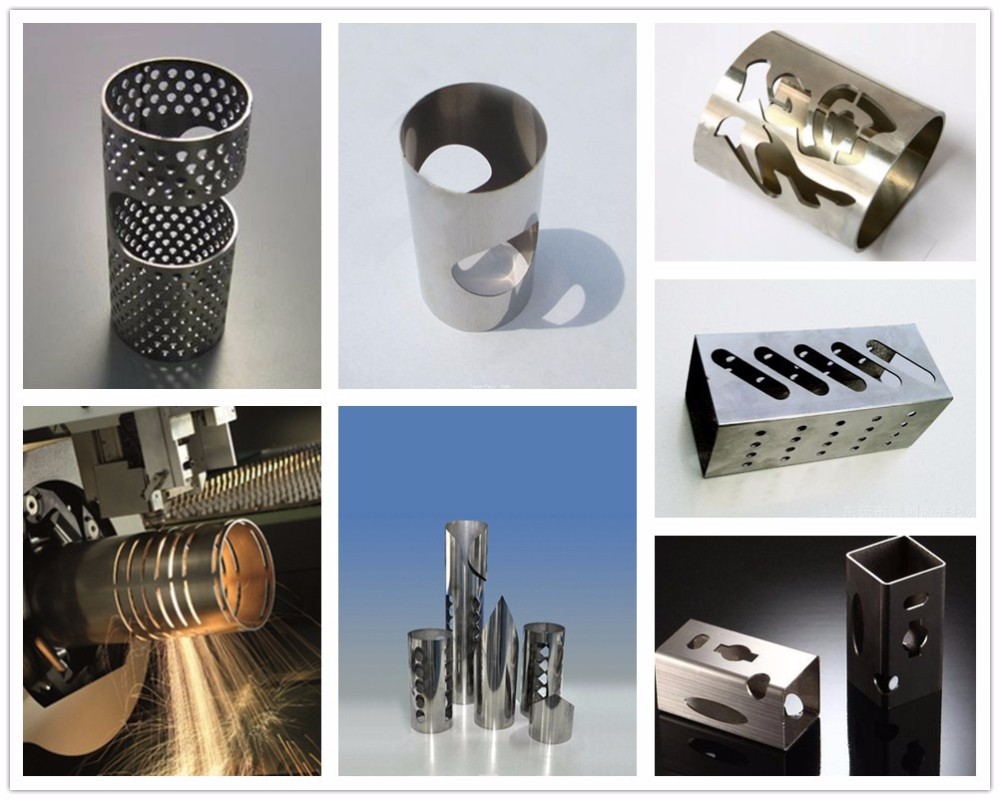

Samples

1. Warranty
One years warranty for the whole machine
Supply free training for the operation and maintaining technology after the order confirmed.
24-hour full after sales service: our skilled engineer will help customer to solve the problem by MSN, SKYPE,QQ etc in time when problems happen, if necessary, overseas service is available.

2.Quality Control
Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.
Before delivery, all finished machine are 100% strictly tested by our QC department and engineering department.

3. OEM Service
Customized and OEM orders are welcome due to our aboundant experiences.
All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc.
No MOQ required.

4.Payment terms
30% T/T paid in advance as deposit, the balance paid before shipment.
Irrevocable L/C at sight.
Alibaba Trade Assurance ( New, safe and popular payment terms)

Quick Details


Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal, Stainless steel, carbon steel, copper, etc.
Cutting Thickness: 0-10mm
Cutting Area:1500*3000mm
Cutting Speed: 0-60000mm/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: AHEADCUT, USA
Graphic Format Supported: DXF
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Laser power: 500W /800W/ 1000W / 1500W / 2600W
Function:Metal Cutting
Laser source:Maxphotonics
Max cutting diameter of round pipe: 200mm
Max cutting diameter of square pipe: 150mm
Laser wavelength: 1070-1080nm
Position accuracy: ±0.03mm
Power supply: 220V 50/60Hz
Machine weight: About 2300kg
Warranty: 1 Year
