provide oversea service fiber cutting pipe/tube machine with 3 years warranty

tube laser cutting services

Product Description


Product Application

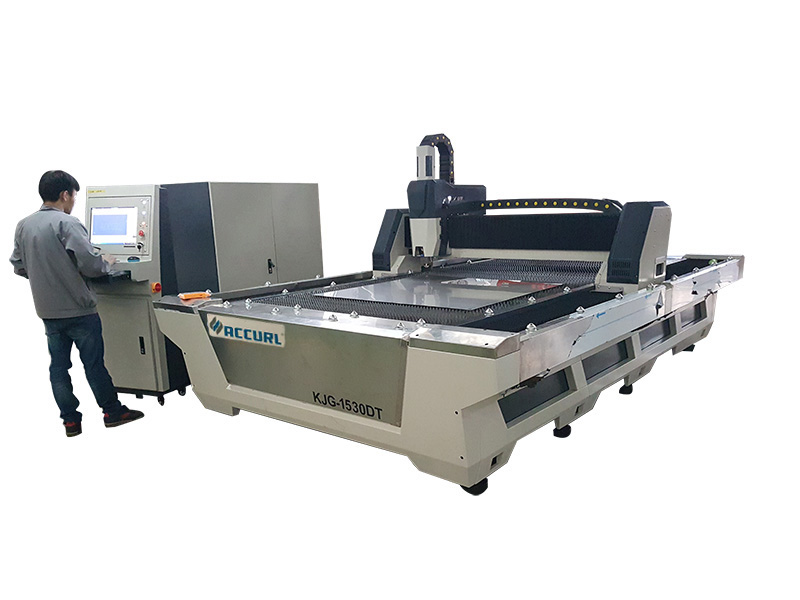

Accurl fiber laser cutting machine is equipped with fiber laser which is energy-efficient, environment-friendly as well as highly efficient.
Recently, fiber laser medium is the most popular and stable laser source internationally. The laser beam of high energy density is focused on the surface of the material. Then the area melts, burns, vaporizes away, and the slag is blown away by a jet of gas, leaving a smooth seam with a high-quality surface finish made by a relative motion between laser light beam and preset routine for the material. That is to say, the automatic laser cutting can be realized when moving the light spot position by the mechanical systems controlled by CNC. KJG fiber laser cutting machine is high-tech equipment integrated with laser technology, CNC technology and mechanical technology.

SPECIFICATIONS FOR CNC Laser Cutting Machine
Accurl 500W Fiber Laser
Laser Power
Watt
500W
Laser Brand
IPG
Made in USA
Cutting Area
mm
1500x3000mm
Accurl 800W Fiber Laser
Laser Power
Watt
800W
Laser Brand
IPG
Made in USA
Cutting Area
mm
1500x3000mm

Accurl 1000W Fiber Laser

Laser Power
Watt
1000W
Laser Brand
IPG
Made in USA
Cutting Area
mm
1500x3000mm

Main Features


1) The Accurl laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and perfectly cut 6mm mild steel,120 holes can be cut within one minute.

2) 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.

3) Using laser electrical cabinet integration design, cover small area , save space, minimalist design.

4) Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.

5) Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper.

Detailed


Major Parts

Name: Machine Body

Brand: ACCURL

Original: Germany

a.The steady gantry framework provides an open worktable.

b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.

c.High quality guarantees its durability and easier maintenance.

Drive System

Name: Servo Drive & Motor
Brand: YASKAWA

Original: Germany
The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.

Machine Parts

Name: Rack and linear guide
Brand: YYC
Original: Taiwan
Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy.

Laser Head

Name: IPG Laser Cutting head
Brand: IPG
Original: America
The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.

Fiber Laser Metal Cutting Machine Technical Parameters

Model No.

KJG-150300JH

KJG-150300JH

XJGC-150300JH

Laser Type
IPG / Coherent / Raycus
Laser Power

500W

1000W

2000W

Cutting Area
                                                          1500mmX3000mm
Working Table Structure

Fixed working table

Pallet Changer

Control System

PMAC full-closed loop servo control

Positioning Accuracy

                                                                    ±0.04mm

Driving Mode

                                                       Double gear rack driving

Idle/Processing Speed
72m/min / 36m/min
                      100m/min / 30m/min
Laser Head
                                            Precitec / Golden Laser / Laser Mech
Cooling System
                                          Dual temperature dual control water chiller
Protection System
            Open Type
                                  Enclosure protection
Format Supported
                                                 PLT, DXF, BMP, AI, DST, DWG, etc.
Power Supply
                                                                  380V / 220V
Total Power
          7KW / 11KW
                              17KW / 8~22KW
Floor Space
     5.6m x 3.2m
                                        9m X 4m
