With the 1500mm x3000mm working area, the F3015 is the basic and the most economic model for F3015. Widely used in the processing of advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc..

SPECIFICATION FOR F3015 FIBER LASER METAL CUTTING MACHINE
Laser head
BodorGenius Auto Focus Laser Head
Laser Source
IPG/Maxphotonics
Working Area
1500*3000mm
Laser Power
500w/700w/800w/1000w/1500w/2000w/2500w/3000w/4000w
Cooling Way
Water Cooling
Control System
BodorPro
Max Cutting Speeed
35m/min
Precision
Position Accuracy:0.03mm. Reposition Accuracy:0.02mm
Drive system
Japan YASKAWA Servo Motor
Transmission
Taiwan silver HIWIN square rail, Taiwan YYC gear rack
Bearing
Japan NSK Bearing
Electric components
French Schneider electrical components
Pneumatic components
Japan SMC pneumatic components
Machine size+ weight
4550*2300*2000mm , After package ,weight 3000kg
Maximum acceleration
1.5G
Other parts
Auto lubrication system + pressure gage + laser protective goggles + WIFI Control+ control panel and etc.

Main Features


1. Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.
2. High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7. Easy Operations: fiber line transmission, no adjustment of optical path.

Quick Details


Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: Depends
Cutting Area: 1500x3000mm
Cutting Speed: 500mm/s
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: BodorPro
Graphic Format Supported: AI, BMP, DXF, PLT
Certification: CCC, CE, ISO, SGS, UL
After-sales Service Provided: Engineers available to service machinery overseas
Keyword: hot sale metal laser cutting machine
Cutting thickness: 0-30mm
Position accuracy: 0.02mm
Cutting speed: 0-10000mm/min
Cutting material: Metal stainless steel carbon steel aluminum
Application: Aluminum Sheets
Vise action Method: Semi Automatic Clamping Vise
Power: Mechanical
Brand: bodor
industriy: jewerlry metal products auto parts

Machine Parts


laser cutting machine parts

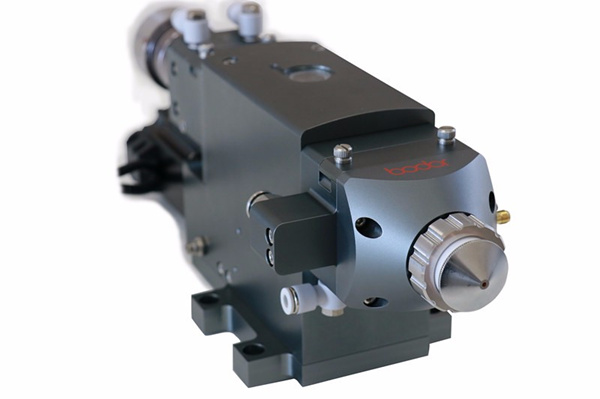

Name: BodorGenius Auto Focus Laser Head

1,Auto-Focus
Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.
2,Free Your Hands
Focal length is controlled by operating system. We don't need to do manual regulation, which effectively avoids errors or faults caused by manual operation.
3,Fast
(1)Auto focus would automatically adjust the most appropriate focal points in the process of punching and cutting, which greatly improves cutting speed;
(2)When replacing different materials or different thicknesses sheet, manual focus laser head needs manual regulation, which is laborious and time-consuming; auto focus laser head is controlled by control system, it can read system storage parameters automatically, saving time and manpower;
(3)Collimating protective lens drawer can better protect collimating lens and improve replacing speed of protective lens.
4,Accuracy
Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.
5,Durable
(1)Built-in double water-cooling structures can ensure the constant temperature of collimating and focusing components, avoiding overheating damage of lenses, cooling effect is better, no heating or fogging in long-term cutting, service life of lenses have lengthened.
(2)Increasing collimation protective lens and focus protective lens, carefully protect key components.

Name: Integrated Casting Machine Body

Using flake graphite cast iron, the lowest tensile strength of which is 200MPa. High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.

Name: Control cabinet

Integrated the laser source and all the electronic machine parts, the cabinet can protect the precious electric parts and expensive laser source. The fan in the cabinet provide a better cooling system for the electrical parts

Name: Automatic lubrication system

Electrical lubrication is a kind of gear pump with rational construction, great performance and comprehensive functions.
By connection with program control system in the main machine, the lubrication system could oversee oil level within tank as well as oil transmission pressure and set lubrication periodicity, which will effectively prevent rust within lubrication system to ensure cutting accuracy.
