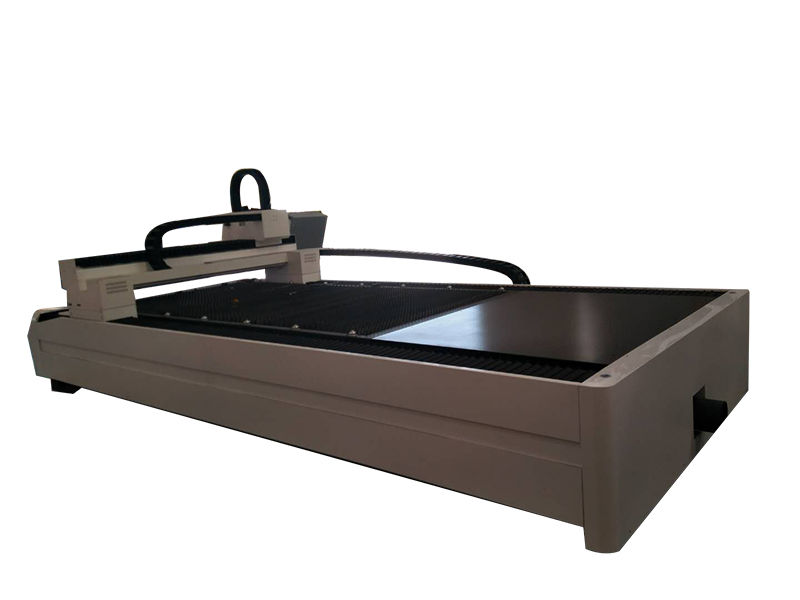

Fiber laser cutting machines are widely used in electrical equipment, kitchen, elevator, advertising signs, autodecoration, sheet metal production, lighting hardware, display equipment, precision parts, metal products and other industries;
Laser Processing Materials:
Able to cut a variety of sheet metals, stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum, manganese steel, various alloy plates, rare Metal and other materials,
Fiber Laser Cutting Machine Principle:
It funtions by working highly focused energy and density spot of laser onto metal work pieces, causing the thermal zone melt and vaporized. Under mechanical motion control, automatic laser cutting is realzied. It is currently one of most advanced processing technologies which involves Fiber Optics, CNC Control and Precision Mechanics
1. Rigid machine body obtained through standard annealing process in high - temperature electric furnace, ensuring precision in the long term
2. Imported original fiber laser generator with super beam quality and stable performances, laser passes through fiber without reflectors, free of light path adjustment, maintenance free, service life up to 100,000 hours
3. Photoelectric Conversion Efficiency (PCE) by 30%, far more higher than CO2 laser or YAG, which saves much of energy cost.
4. Imported precision motion parts and servo motors, which support high-speed running
5. Capable of cutting various graphics and words, which makes work simple , flexible, and convenient.
6. Smooth cut without deformation.
7. Extremely low energy cost, which accounts only 1/3-1/5 of YAG machine if output powers were the same, environment-friendly.
8. Solid-state laser type, which supports multimode integration with multimode power outputs, able to cut a variety of sheets with fair speed. In addtion, it supports air cutting thin sheets, greatly shortening period of ROI (return of investment)
Laser Technology: Laser Flame Cutting
Max Cutting Thickness: 25mm Carbon Steel
Working Size: 3000*1500mm
Repeat Locating Precesion: ±0.02
Assistant Gas: Oxygen, Nitrogen, Compressor Air
Bearing Weight: 1500kg
Power Supply: 380V/50Hz/60Hz
Max Acceleration: 1.2g
Max Traveling Speed: 120m/Min
Total Power: <18kw
Total Weight: 10 Tons
Transport Package: Plywood Package
HS Code: 8456110090
|Optional Size||2500*1300mm||4000*1500mm 4000*2000mm|
|Transmission||X/Y Rack and pinion, Z ball screw drive|
|Max Traveling Speed||120m/min||120m/min||120m/min||120m/min||120m/min|
