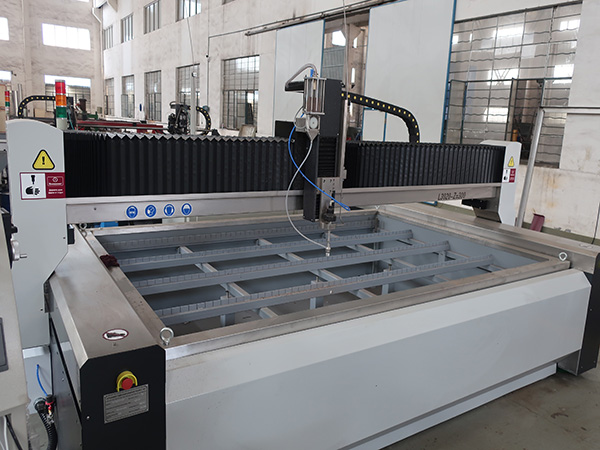

glass water jet cutting machine price with kmt pump

glass water jet cutting machine price with KMT pump

Product decription


A full set of abrasive waterjet cutting machine includes work table, CNC controller, High pressure system with cooling system, Auto abrasive feeder, Water treatment and Sludge Removal System, etc.

Waterjet can cut almost every thing, including: stainless steel, hard tool steel, mild steel, aluminium, brass, bronze, titanium, tungsten steel, zirconia, glass, plexiglass, rubber, ceramic,marble, granite, etc.

Teenking 5 Axis Waterjet


3D head

It is a 5-axis motion. With 2 rotating axis, 3D waterjet can cut at fixed or varying angle on 2D or 3D worksheet surface.

Teenking 3D waterjet is most popularly applied in extensive processing industries, handling all kinds of complicated cutting cases easily, such as vertical cut, tiltling cut and cut on 3D part surface, etc. With dynamic compensation, 3D head offsets the natural taper of jet to ensure the exact cutting effect and high accuracy.

Main function

a) Dynamic vertical cut compensating,

b) Beveling cut within ±60º(extendable to ±90º),

c) Cut with varying angle (within ±60º) on 2D and 3D part surface (extendable to ±90º)

Why Teenking 3D waterjet?

a) Prime Patented Design with excellent sealing, expending service life of cutting head

b) Harmonic drive inside(no backlash), decreasing maintenance cost in future

c) Infinite C axis rotation, avoiding travel limit in processing

d) Water/dust proof: lp64, ensure good working state of cutting head

DY tilting head

DY head can cut at a fixed tilting angle on the

planeof worksheet, following internal or external contourline. It can also cut at varying angles,

max tilting upto +/-7 degree with extremely high accuracy.Especially suitable for high-precision metal processingand high-end ceramic or stone parquet, etc.

Main functions

a)Compensated vertical cutting

b)Tilting cutting within +/-8 degree

DYB beveling head

DYB head can cut at a fixed tilting angle on the plane of worksheet, following internal or external contour line. It can also cut at varying angles, max tilting up to +/-14 degree. It’s mainly applied in ceramic and stone parquet cutting. The head can tilt +/-15 degree, cutting sharp corner without arc. Cutting bottom is minimized to leave space for parquet glue, and surface is seamless. It’s the best choice for parquet cutting, cutting with full speed but to keep perfect workpiece surface.

Main functions

a)Dynamic vertical cut compensating

b)Tilting cut within +/-15 degree

Drive system  Motor
  Pressure system  Intensifier
  Max. cutting pressure  420MPa/60000psi
  Continuous working pressure  350-380MPa/50000-55000psi
  Max. flow rate  3.6L/min /                  7.0L/min
  Nonimal power  37KW/50HP            75KW/100HP
  Power Supply  380V/50Hz, 3 Phases
  1.    Imported original intensifier and accumulator assembly are specially adapted to ensure system stability and service life.
  2.  With effective fan-oil cooling system, oil temperature is strictly control to not over 60 degrees Celsius, guaranteeing life of sealing elements.
  3. Various Instruments monitor data of temperature, pressure and running.
  4. Auto dual pressure (low/high range 70~380MPa) pressure control system enables automatic low/high pressure switching when cutting, decreasing damages to work pieces.

 Gantry type

Cantilever type
              Available cutting area   (mm)           (For more size, please contact us freely.)


1500x3000



2000x3000



2000x4000



3000x6000



Max speed in X,Y axis



20m/min

Max speed in Z axis3m/min


Tolerance square

(100x100mm)

+/-0.02mm
Tolerance circle

(dia 500mm)

+/-0.08mm


Position in X,Y axis



≤+/-0.05mm per 300mm



Reposition tolerance



≤+/-0.02mm/ full range

Quick Details


Condition: New
Machine Type: Glass Cutting Machine
Production Capacity: 10 sets/month
Voltage: 220V/380V/415V
Power(W): 37KW
Dimension(L*W*H): 2000x1500mm
Weight: 4500kg
Certification: CE
Warranty: 18 Months
After-sales Service Provided: Engineers available to service machinery overseas
Type: Gantry structure
Max. cutting size: 2000x1500mm
Max. cutting thickness: 200mm
Max. cutting speed: 10m/min
Cutting Accuracy: 0.05mm
Re-position precision: ±0.02 mm
Max. pressure: 420mpa
Application: Cut glass, plastic, ceramic, stone and metal,etc
Packing size: 4.7x2.3x2.2 m
Total weight: 4200KG
