I. Features of morn fiber laser cutting machine for metal:
1. Great Performance: Identical cutting quality on any cutting point is realized through fiber transmission.
2.High Efficiency: The rapid cutting speed is two times higher than that of CO2 laser machine. Its use-cost is very low.
3.Low Consumption of Gas: Laser cutting does not make any gas because of the specific cutting technology on steel plate.
4.Low Consumption: It is environment-protecting and energy-saving, power consumption is reduced by 20%-30% compared with CO2 laser.
5.Maintenance-free: The machine is maintenance-free, there is almost no any parts need to change after long term use.
II. Application of ACCURL Fiber laser cutting machine for metal and sample photos.
Professional for stainless steel, carbon steel as well as other metal sheet cut, widely used in metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevator manufacture, special vehicles, houshold appliances, toos, processing, IT manufacturing, oil machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration adverting, laser surface treatment of foreign processing services, such as all kinds of machinery processing industry.
III. Technical parameter
Laser Technology: Laser Flame Cutting
Model: Fiber Metal Laser Cutting Machine
Power: 250-2000W Optional
Working Area: 1500*3000mm
Source: Fiber Generator
Laser Brand: Raycus, Ipg, Nlight Optional
Cutting Speed: Max 80m/Min
Min Line Width: 0.01mm
Cutting Accuracy: 0.01mm
Warranty: 3 Years
Transport Package: Container
Specification: 20" container
HS Code: 8456110090
|Laser power||250W, 500W, 700W, 1000W, 1500W, 2000w for option|
|Laser type||Fiber generator (Domestic or Imported for option)|
|Intelligent memory||Store unlimited files up to 128 MB|
|Laser head||Automatic following laser head|
|Control system||PC control with Cypcut or imported controller and software|
|Drive system||Japan Fuji, Yaskawa, Panasonic servo motor and drivers|
|Reducer||Equipped with the imported reducer, with higher quality|
|Compatible software||Coreldraw, AuotCAD, Photoshop|
|Graphic format||BMP, PLT, DST, AI, DXF, etc|
|Min line width||≤0.01mm|
|Speed and power control||Computer or manually controlled speed, max up to 80m/min, and power in 1% increments to 100%.|
|Print interface||Ethernet or USB interface. Compatible with Windows 8 / 7 / XP, etc|
|Electrical requirements||AC 220V ± 10% or 380V ± 10%|

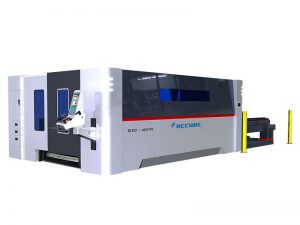

IV.. Specifications of ACCURL Fiber laser cutting machine for metal and design photo
1. Drive system: 4sets driver and motors. X by 1000w, Y by double 1500w(or double 2000w), Z 400w Japan Servo
2. Control system: Cypcut control system
3. Water chiller: 5P for 1000w-2000w (1.2P or 2P for lower power)
4. Transmission: XY by gear, Z by ball screw
5. Guide rail: PMI guide rail from Taiwan
6. Machine weight: total 5000kg for whole machine
7. Machine working size: 3000*1500mm
8. Rotary is optional and customized, according your tube length and diameter
9. Protecting lens, cutting mouth, focus lens and Ceramic ring is optional parts
