Quick Details
Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: Depends
Cutting Area: 3000*1500mm
Cutting Speed: 25m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Certification: CE, GS, ISO, SGS, UL, Other
After-sales Service Provided: Engineers available to service machinery overseas

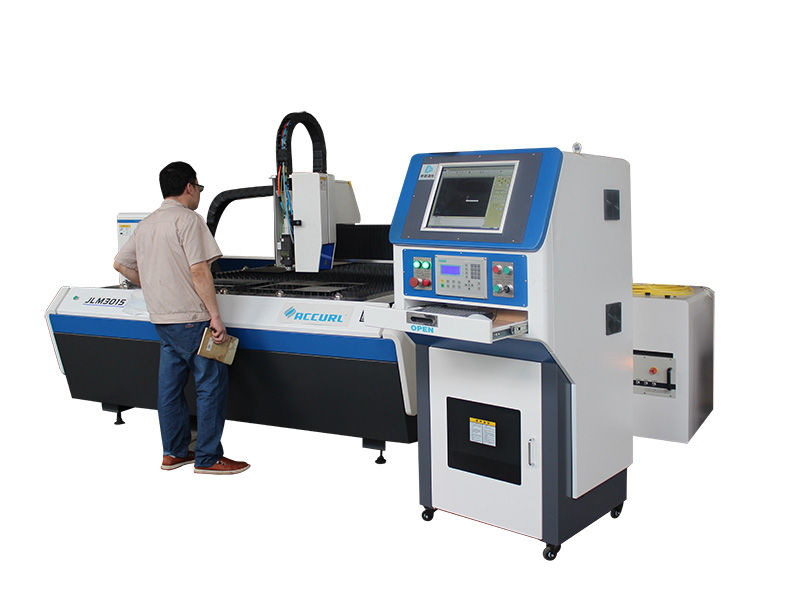

Product name: Fiber Laser Metal Cutting Machine
Laser power: 500W / 1000W / 2000W / 3000W
Function: Cutting Metal Materials
Type: Fiber Lasr Cutting
Working area: 3000*1500mm
Color: White
X,Y positioning accuracy: 0.05mm
X,Y reposition accuracy: 0.05mm
Keyword: Fiber Laser Cutting Machiens
Z axis stroke: 120mm
Characteristics of our laser cutting machine
1.Cast iron bed
Integrally formed, reject splicing
Using flake graphite cast iron, the lowest tensile strength of which is 200MPa.High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Good casting and cutting performance. Excellent lubricity, corrosion resistanceand dimensional stability. Low thermal sensitivityand bed gap sensitivity reducethe loss of equipment in using, so the machine accuracy could maintainfor a longtime, and no deformation in alife cycle.
2.Auto focus laser head
Free your hands, enjoy auto focus
(1)Auto-focus
Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknessessheets metal.
(2)Free
Focal length is controlled by operating system. We don’t need to do manual regulation,which effectively avoids errors or faults caused by manual operation.
(3)Fast
It can automatically adjust the most appropriate focal points in working process, greatly improvingcutting speed;
When replacing different materials or different thicknesses sheet, manual focus laser head needs to adjust focal length manually, very inefficient; auto focus laser head can read system storage parameters automatically, very efficient;
(4)Accuracy
Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.
(5)Durable
Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses.
Increasing collimation protective lens and focus protective lens, carefully protect key components.
3.Operating system display
Elegant appearance curve
The first one to use UI design in the world which lets display respond to processing table, making processing more intuitive. Elegant curves precisely fit machine body. Strong waterproof breathable system creates the best space, making operation more convenient. Diamond cutting process and HD plasma tempered glass make screen more exquisite and comfortable to use.
3. Operating system display
Elegant appearance curve
The first one to use UI designin the world which lets displayrespond to processing table, making processing more intuitive. Elegant curvespreciselyfit machine body.Strong waterproof breathable system creates the bestspace, making operation more convenient. Diamond cutting processand HD plasma tempered glass make screen more exquisite and comfortable to use.
4. Cast aluminum crossbeam
Integral steel mold pressure casting, light, flexible and efficient
After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.
Parameters of laser cutting machine
| Max Cutting Range | 3000*1500mm | 4000*1500mm | According to Demands |
| Machine Size(L*W*H) | 2.4*4.7*1.9m | 2.4*5.7*1.9m | |
| AccessoryParts(L*W*H) | Chitler 1*1*1.2m Control Box 1*0.8*1.8m Fiber Module 0.5*0.6*0.14m | ||
| Laser Medium | Single Core Junction Semiconductor Module | ||
| Max Cutting Speed | 35m/min | ||
| Cooling Way | Water Cooling | ||
| Laser Power | 1000W/2000W/2500W/3000W/4000W | ||
| Min Line Width | 0.1mm | ||
| Cutting Depth | 0.2-6mm | ||
| Drivingand Transmission Way | Imported Servo Motorand Linear Guide Rail | ||
| Power Requirements | 380V/50Hz/16A | ||
| Continuous Working Time | 24Hours | ||
| Related Weight | Machine Body 2732kg Trolley 116kg Computer Cabinet 56kg Servo Cabinet 75kg Transformer 77kg Chiller 93kg Fiber Module 50kg | ||
