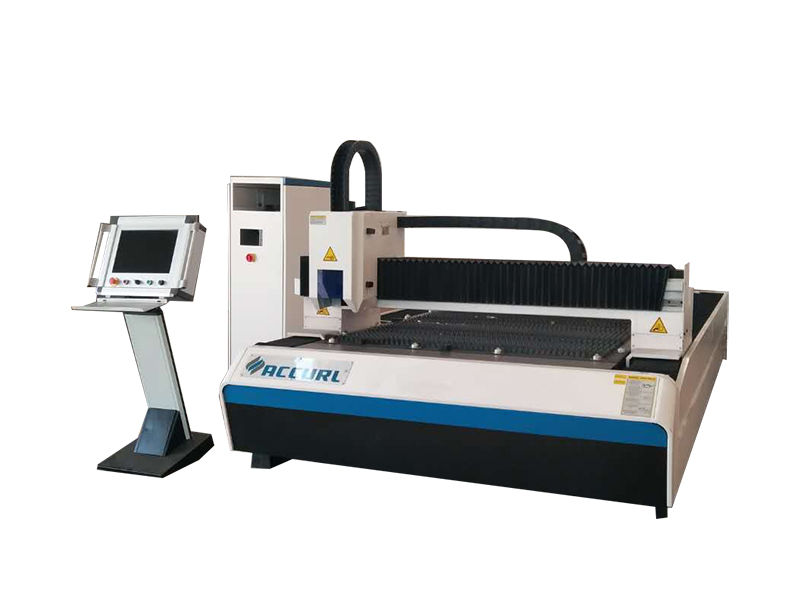

Fiber Laser Cutting Machine 1000W/2000W/3000W 3000mm*1500mm

fiber laser cutting

APPLICABLE INDUSTRY


It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.
2000w Tube Fiber Laser Cutting Machine with CE Certificate

ACCURL FIBER LASER CUTTING ADVANTAGES:


1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal

Basic Info


Laser Technology: Laser Control Fault Cutting
Automation: Automatic
Condition: New
Certification: CS, SGS, ISO 9001:2008
Type for Cutting Machine: Laser Cutting Machine
Type: High-Power Laser Cutting Machine
Cooling Mode: Water Cooled
Outline Size(mm): 4270mm*2420mm*1750mm (L*W*H)
Warranty: 1 Years on Laser Source
Electrical Requirements: 380V/50Hz.60AMP
Transport Package: Wooden Box
Specification: SGS/CE
HS Code: 84561000

Medium of laserSemiconductor pump continuous ytterbium doped fiber
Laser wavelength1070nm
Laser output power500W1000W
Cutting area(mm)(L×W)3000mm×1500mm
Max cutting speed(m/min)18 m/min24 m/min
Min line width< 0.1mm< 0.125mm
Cutting depth0.2mm---5mm0.2mm---8mm
Driving WayImported servo motor
Tranmission WayY-axis imported gear rack double driver,X-axis imported gear rack
Operational Temp Range10 ~ 40ºC
Electrical Requirements380V/50Hz.60Amp
Cooling ModeWater cooled
Continuous working time24 hours
Warranty:1 years on laser source
WeightAbout 4500kg
Outline size(mm)4270mm×2420mm×1750mm  (L×W×H)

APPLICABLE MATERIALS:


Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

APPLICABLE INDUSTRY:


It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.

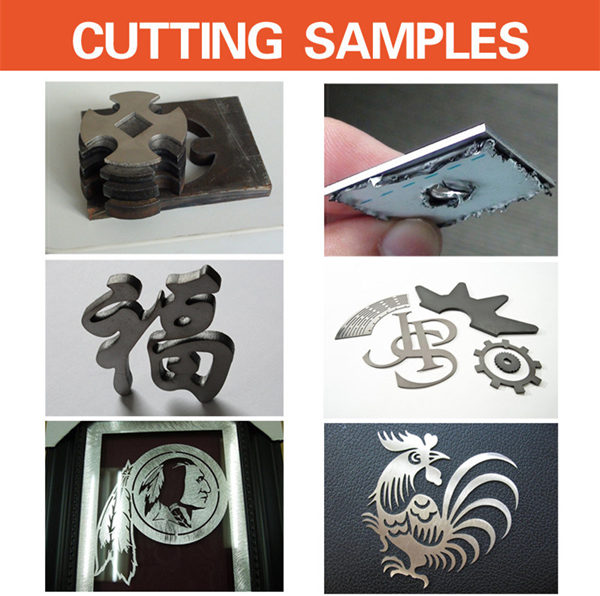

Sample Marking


sample marking
