Our products are widely used in Woodworking, Advertising, Model, CAD / CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on. We have our R & D department, Quality control department , and After sale & service department.

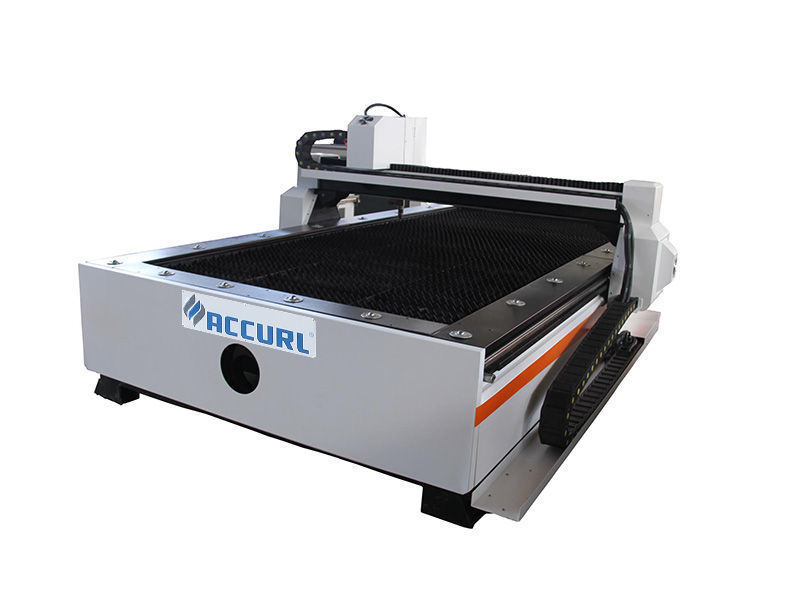

Features of cnc plasma cutter machine:
Effective working area: 2000*4000mm
Plasma & Flame cutting head
America Hypertherm 200A
PMI Linear guide for 25mm
Cutting thickness is 3mm -200mm stainless steel
Japan 750w Panasonic servo motor
Electronic PCB foil keyboard (one machine)
Automatic oil lubrication
3 phase 380V 50HZ/60HZ
START (X3 series) with THC function
Advantages of cnc plasma cutter machine:
America Hypertherm 200A power, with more higher cutting precision
Bigger working area 2000*4000mm
Plasma and Flame cutting head, can cut more than 100mm thickness
Quick Details
Condition: New
Voltage: 50HZ, 380V,3 Phase
Rated Power: 7.5kw, 40A/45A/60A/63A/65A/85A/100A/120A/160A/200A/260A
Weight: 1000KG
Certification: CE ISO FDA
Warranty: Two Year
After-sales Service Provided: Engineers available to service machinery overseas
Color: red blue white
Rated power: 20KW
Cutting speed: 0-8000mm/s
Driving system: motor and driver
Working area: 600x900mm/1300x2500mm/1500x3000mm
File transfer: USB
Cutting accuracy: ≤0.1mm
Travelling speed: 0-50m/min
Parameters of cnc plasma cutter machine:
| Working area | 1300*2500mm | 1500*1300mm | Customizable |
| Cutting Thickness | (40A)0.5--10mm | (40A)0.5--10mm | (40A)0.5--10mm |
| (120A)3-16mm | (120A)3-16mm | (120A)3-16mm | |
| (200A)3-25mm | (200A)3-25mm | (200A)3-25mm | |
| cutting speed | 0-8000mm/min | 0-8000mm/min | 0-8000mm/min |
| Moving Speed | 0-50000m/min | 0-50000m/min | 0-50000m/min |
| power | 8.5KW-10.5KW | 8.5KW-10.5KW | 8.5KW-10.5KW |
| Input Voltage | 3 Phase380V | 3 Phase380V | 3 Phase380V |
| Power Frequency | 50Hz | 50Hz | 50Hz |
| Files Transfer | USB | USB | USB |

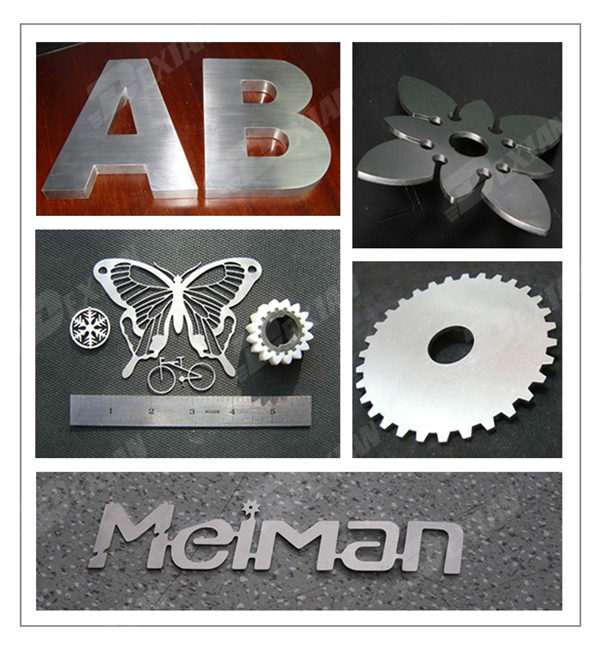

Products sample:
Application Materials: Stainless steel, mild steel, hard matel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc
Application Industry: Sheet metal, kitchenware, components, decorations industry
