Main component of machine--Advanced Control system Function
1 . Sheet material surface height tracking control (follow-up function);
2 . Laser power ramp control;
3 . Self-adaptive feedforward "ART" regulation technology;
4 . Rollback function;
5 . Breakpoint return function;
6 . Automatic frame-finding function;
7 . Height sensor automatic calibration function;
8 . Change to pulsing at corner cutting control function;
9 . Pause and deceleration at corner function;
10. Leader-line low start-up speed cutting function;
11. Other Functions.
|Laser source medium||Fiber|
|Cutting range(L*W)||4000 mm × 2000 mm|
|Z axle stroke||120 mm|
|Max positioning speed||120 m/min|
|X, Y axle Max accelerate speed||1.2 G|
|Cooling form||water cooling|
|Output power of laser source||1500W / 2000W|
2500W / 3000W / 4000W
|Min. cutting gap||≤ 0.1 mm|
|Positioning accuracy of X, Y and Z axles||± 0.03 mm|
|Repeated positioning accuracy of X, Y and Z axles||± 0.02 mm|
|Processing precision of work piece||± 0.1 mm|
|Kerf harshness||Ra 3.2 - 12.5 μm|
|Min setting unit||0.001 mm|
|Control System||Ahead Tech (USA)|
|Thickness of cutting material (according to material)||0.2-25 mm|
|Drive model||Imported servo motor|
|Power requirement||380 V, 50/60 Hz|
|Total installed capacity||20 - 25 KVA|
|Working temperature||5 - 45ºC|
|Continuous working time||24 Hours|
|Machine weight||About 8150Kgs|
|Outer dimension||8500mm x 3800mm x 2000mm|
|Total protection level of power supply||IP54|

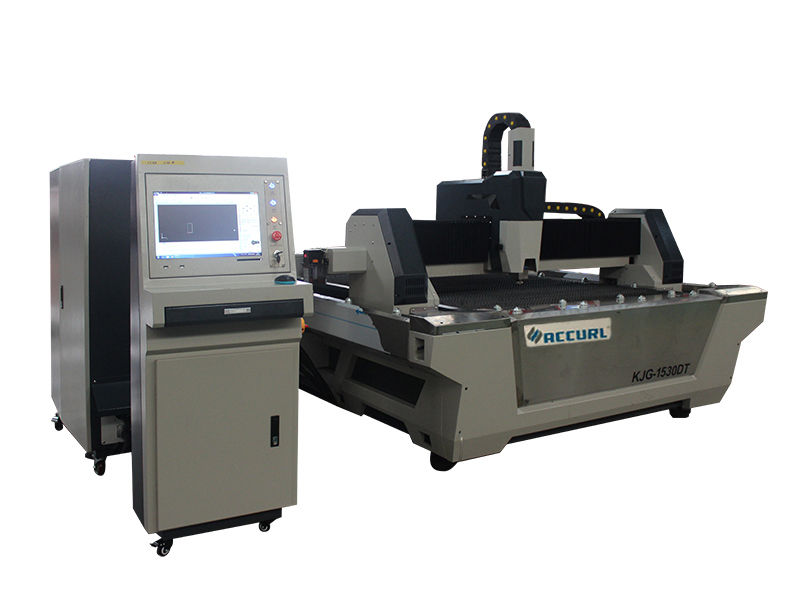

Features of Han's GS Laser Cutter
Low running and maintenance cost
Lower running cost compared with traditional CO2 laser cutting machine, the power consumption is 20%-30% of CO2 laser cutting machine.
Environmental protection, low power consumption which is just 20%-30% compared with traditional CO2 laser cutting machine.
The maintenance cost of fiber laser cutting machine is much lower since it's without reflective lenses.
Rational Structure and Easy Operation
Professional CNC laser control system with computer control which is more simple and convenient for operation.
Satisfied with flexible processing with small size and intense structure design.
Convenient operation with fiber transmission, laser route adjustment is unnecessary.
Gantry design with double drive structure, high damping machine tool with better rigidity which can stand higher speed and acceleration speed.
Adopt with alternative drive system and transmission system which are imported from abroad to ensure the high speed, high precision and high reliability.
The rack and guide is comprehensively sealed to prevent the friction without oil and dust pollution in order to make the drive system much longer service time and ensure the movement precision of the machine tool.
Stable performance with high cutting speed, precision , efficiency and protection
High speed: Capable to cut sorts of metal board with air blowed; the cutting speed can reach dozens of meters per min.
High precision: Adopt high precision drive structure with imported service motor, ±0.03mm positioning precision
High efficiency: Software with strong function, capable to design sorts of shapes, letters for cutting with easy and convenient operation.
High protection: the laser source and machine tool is comprehensively sealed to ensure the security of the operator, the whole working process can be viewed and inspected through the glass.

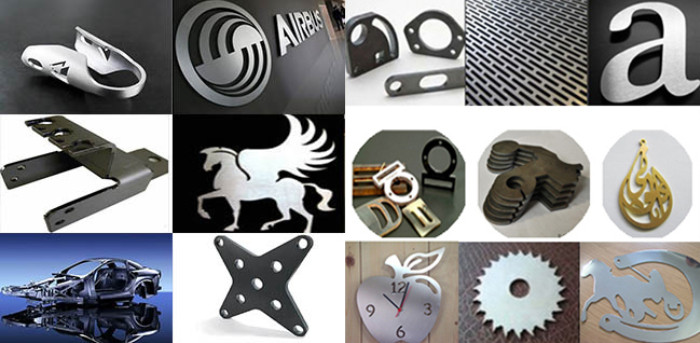

Laser Cutter Sample
