plasma cnc for cutting square tubing from 40x40mm to 100x100mm/tube plasma cutter

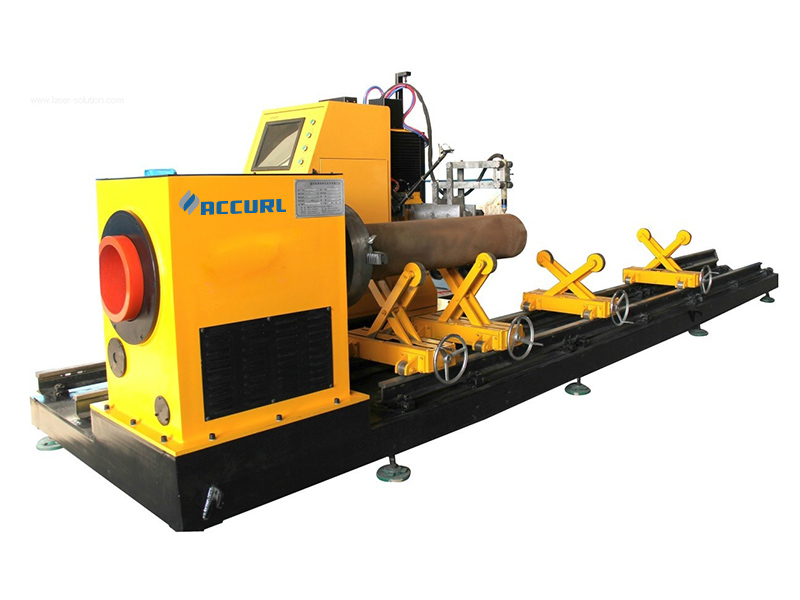

cutting square tubing with plasma cutter

Product Description


1.Machine Features tube plasma cutter

1.The beam uses light structural design,with good rigidity structure, light deadweight .

2.The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.

3.Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States HYPERTHERM plasma source the machine can reach threshold.

4.Equipped with other advertise equipment (blister/engraving machine) .Improve the efficiency of several times

5.Cutting mouth is small, tidy,and avoid a second dressing processing.

6.It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates , metal plates.

7.The numerical control system disposes high, the automatic striking arc, the performance is stable.

8.Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents.

Advantage tube plasma cutter


a. the machine have THC functions.

b. higher speed cutting than cnc router.

c. can also add flame cutting for more thickness

Technical Parameters


Description

IGL-1325

Working size

1300*2500

Working materialSteel,aluminum,stainless steel
Z axis clearance100mm

Working material thickness

0.5-30mm
Plasma PowerHUAYUAN,Cut Master,Hyper Therm
Input current

60A,80A,100A,120A, etc

Plasma Cutting accuracy+0.5mm
Repeatability0.05mm
Cutting speed0-8m/min
Input voltage380V 3Ph or 220V,3Ph (Customized for you)
TransmissionRack pinion
Driving systemStepper system
Power frequency50HZ
File transmissionUSB (interface)
Working ModeUntouched arc striking
Cooling methodWith water pump and tank provide circulating water cooling
Rail guidePrecision square rail
Transmit wayTaiwan imported ball screw
CommandG code, *plt
Table typeTeeth and water table
Loading weight1200KGS

Applicable Industries
Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.

FAQ

Q1: How to get the most suitable model with competitive price?
Please tell me what’s material you want to cutting?
And what’s MAX size of carved material ? What is your Max.cutting thickness? would you mind showing me your sample pictures?

Q2: How about your company’s control system?
We set up a special QUALITY CONTROL DEPARTMENT inside of the factory.Therefore there is a strict control for each process,and we have regulated the standards for welding process, machining process, assembly process, manufacturing process and packaging process,etc.

Q3: Does machine comes with software?
we offer fastcam software free with machine.

Our Service

# 18 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.

# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our enginner could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine.

Now You can order freely !!!

Good news!! We support Alibaba trade assurance, you can place order directly on Alibaba. Now our Trade assurance limit is up to USD96,000.

Delivery and Transport:

We can send machine to your port or door address by sea or airplane.

Pls kindly tell us your near port or address with postcode.
