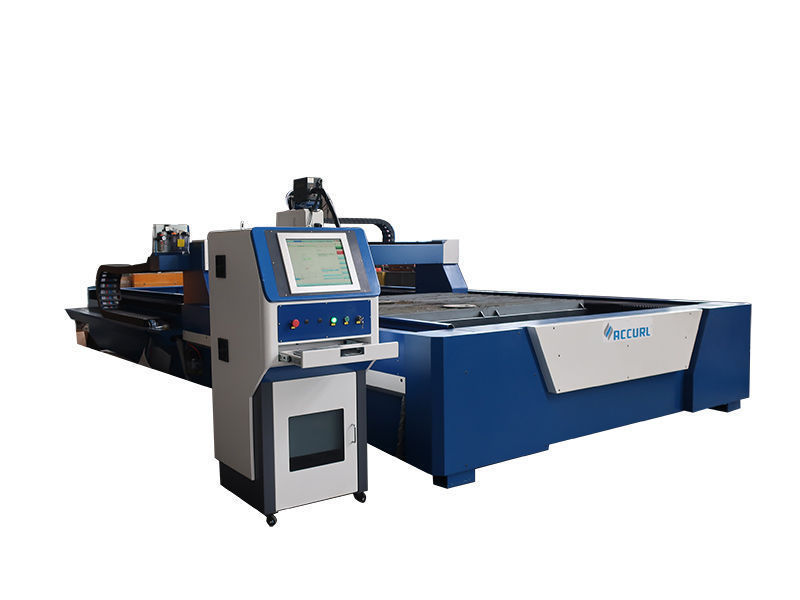

Metal Sheet 2100 x 6100mm True Hole CNC Plasma Bevel Cutting Machine with HPR 800 XD
Accurl CPL Series Plasma Cutting Machines has a double side gear drive and it’s designed with strong steel construction for positioning capability at high speeds. You will have a precise cutting ability at X-Y axis with linear guide ways and 30m/min speed. It has ability to maintain constant at the same height and the quality, with the Arc-THC control sensor.
1. CNC plasma cutting machine adopts light-weight structural design, the structure has good rigidity, light weight and small motion inertia.
2. Gantry-type structure. Y axis adopts synchronous double-motor and driver, and X,Y,Z axises adopt linear guideways, stable transmission and high operational precision.
3.Mainly cut Threedimensional LED advertising word, metal plates with groove characters and baseboards, and cutting accuracy lives up to excellent index
4. Small cutting holes, tidiness and no-residue phenomenon, avoids shaping process at second time.
5.Fast cutting speed, high precision and low cost.CNC system with high configuration, automatic arc strike and stable performance, with above 99% arc strike success rate.
6.Support for standard G code path files which are generated by softwares such as Artcut, Artcam, Type3. DXF format files generated by softwares such as AUTOCAD can also be read through software transform. The controlling system adopts U disk to exchange processing files, operation is convenient and speedy.
7.Plasma power source and burning torch are equipped with famous domestic brands. and they are manufactured by factories with multi-termed national patent technology
CNC Plasma Cutting Machine Features
1 The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.
2 The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
3 Aiming at cutting three dimension LED character, trough metal panels and floor cutting,
the accuracy can reach good indicators. Equipped with other advertise equipment (blister machine, engraving machine), forming the advertising word processing pipeline. Completely solve the traditional manual processing methods. Improve the efficiency of several times.
4 Cutting mouth is small, tidy,and avoid a second dressing processing.
5 It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates , metal plates and so on.
6 High cutting speed, high precision, and low cost
7 The numerical control system disposes high, the automatic striking arc, the performance is stable.
8 Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents. The control system uses the U-disk exchange processing document, easy to operate.
1. Technical solution.
2. Online video authentication machine work.
3. Cutting samples provided by DHL
4. Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it’s necessary, Buyer should send regular his technical staff to Supplier for technical training.
Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.
Metal Cutting Materials:
All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.
|Type||ACCURL CPL- 2060|
|Product Name||3D CNC Plasma Cutting Machine|
|Table Width||2100 mm|
|Table Lenght||6100 mm|
|Height Under Torch||150 mm|
|Machine Width||2850 min-1|
|Machine Lenght||7420 mm|
|Machine Height||1710 mm|
|Table Height||800 mm|
|X Axis Stroke||2050 mm|
|Y Axis Stroke||6050 mm|
|Max. Positioning Speed (X-Y)||30 m/min|
|Total Power Consumption|
(without Plasma System)
1. More than 12 years experience for Hydraulic Press and 16 years for sheet metal machinery
2. Total Number of Employee : 455
3. Floor Area : 56,765m^2
4. New factory area : 61,321m^2
5. Whole factory is controlled by ERP-Enterprise Resource Plan
We are producing below ranges of machines:
1. CNC Press Brake
2. CNC Laser Cutter(Validation phase)
3. CNC Punch Press(Validation phase)
4. CNC Shears
5. Hydraulic Press
6. Pipe&Roller Bender
7. Iron Worker
8. Automatic Production line
