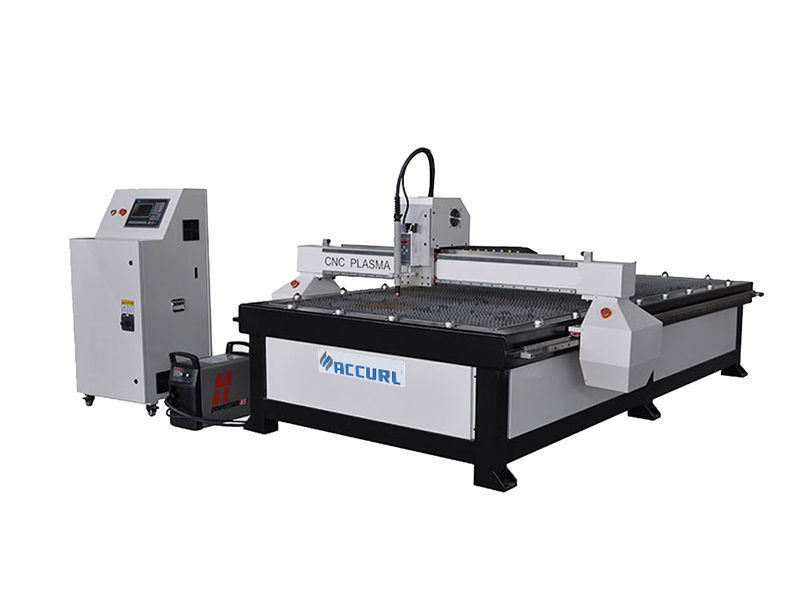

Features of plasma cnc cutting machine
1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
2. Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.
3. For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy good indicator. If equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.
4. And other advertising devices(vacuum forming machines, gear cutting machine) to form ad word processing pipeline, completely solve the traditional way of manual processing. Improve efficiency several times.
5. Cutting speed, high accuracy and low cost.
6. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.
7. Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.
8. Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.
Rated Power: 7.5kw
Certification: CE ISO
Warranty: 3 Years
After-sales Service Provided: Engineers available to service machinery overseas
Working area: 1300mm*2500mm/1500*3000mm
Application: Industrial Metal Cutting
Control system: STARTFIRE Control System
Cutting thickness: 0-30mm
guide way: TAIWAN HIWIN square rail
table board: steel blade saw tooth mesa
Driving system: Leadshine Motor
Cutting speed: 10-15/min
|Model||plasma cutting machine|
|Repeat positioning accuracy||±0.05mm|
|Transmission model||Gear rack drive|
|Transmission system||X,Y Taiwan Hiwin high-precision,|
zero clearance increased
linear guide+ rack
|Operating System||START or DSP with USB Interface|
|Cutting type||Plasma/oxy-acetylene or propane|
|Input voltage||3 phase,220v/380v±10%|
|Mode of file transfer||USB Interface|
|Guide way||Imported square rail|
|Table-board||Steel blade saw tooth mesa|
|Straight line positioning precision||±0.2mm/10m|
|Straight line repeat precision||±0.3mm/10m|
|Humidity||<90% No concreting|
