2 years warranty cheap cnc plasma cutting machine / cnc plasma cutter china

cnc plasma cutting machine china

Product Description

CNC plasma cutting machine Applicable industries

Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,Military industrial,Wind power,Structural Steel,Boiler containers,Agriculture Machinery,Chassis electrical cabinets,Elevator manufacturers,Textile Machinery,Environmental protection equipment,ect.

CNC plasma cutting machine Applicable materials

Aluminum,Copper,Titanium,Nickel,Iron,Galvanized sheet,White steel,Titanium plate,Carbon steel,Stainless steel,Alloy steel,Composite metal

Quick Details

Condition: New
Voltage: 220V/380V
Rated Power: 4KW
Dimension(L*W*H): 3880*2280*1500mm
Weight: 2000kgs
Certification: CE FDA
Warranty: 2 Years
After-sales Service Provided: Engineers available to service machinery overseas

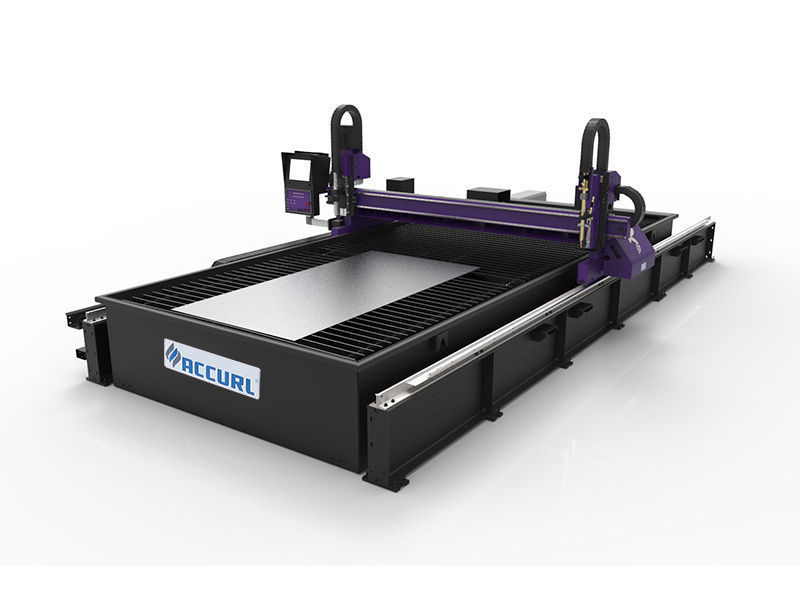

Model: XQ-2030 Plasma cutting machine
Working area: 2000*3000mm
Plasma power: 63A/85A/105A/125A/160A
Plasma source brand: China Huayuan / USA Heypertherm
Processing thickness: 0.5-30mm (Depends on the materials)
Control system: Beijing START
Cutting speed: 0-8000mm/min
Traveling speed: 0-50000mm/min
X Y Transmission: Rack Gears
XYZ Axis Driver: Stepper Motors

Technical Parameter

Working area(customizable)2000mm*3000mm1500mm*3000mm
Processing thickness0.5-30mm
Power8.5kw-10.5kw
Working voltageAC 220V/380V 50Hz/60Hz
Cutting speed0-8000mm/min
Traveling speed0-50000mm/min
Plasma current45A-200A
Plasma source brandChina Huayuan / USA Heypertherm
Power frequency50Hz
File transferUSB Interface
ControllerBeijing Start or DSP with USB Interface
Torch Height controllerBeijing Start
Machine StructureWelded
X Y TransmissionRack Gears
XYZ Axis DriverStepper Motors
Working DictateG Code

(1)  CNC Plasma Cutting Machine can use Plasma torch or flame torch, so that can cut different cutting thickness.
(2)  CNC Plasma cutting machine Use Beijing START control system,Easy to use and convenient operate.
(3)  CNC plasma cutting machine Using USA hypertherm Plsma source or China best LGK huayuan plasma source,so that can meet different customer's need.
(4)  CNC plasma cutting machine Using different type working table and stable Tank chains.
(5)  CNC Plasma cutting machine Using 25mm Taiwan HIWIN Liner Guide,More easy to move it.
