flexible beam cnc plasma flame cutter cutting machine factory

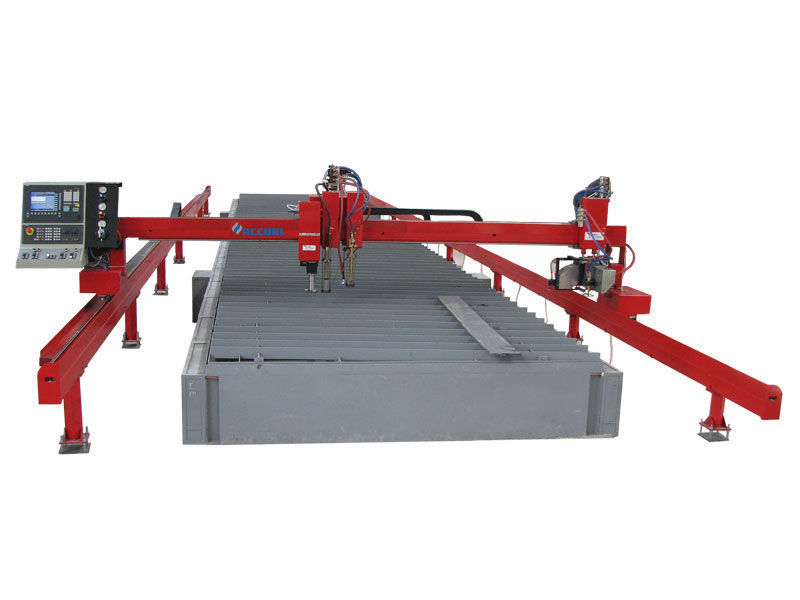

flame cutter machine

1.Product description

Supporting plasma cutting and gas cutting, able to cut any complex flat graphic. It is an upgraded machine of hand torch, semi-automatic cutting machine and profiling cutting machine, especially suitable for mass production of complex graphics with high requirements on precision. It can greatly improve cutting efficiency, reduce secondary processing and production costs.


Effective cutting range (X*Y axis) 1500x7500mm
Freely switching in English, Russian, French, Portuguese, Spanish etc. for CNC control system.
Storing over 1000 program files to be cut.
Able to cut any complex flat graphic

3.Feature and advantage

Long life, main parts all use well-known brand
High precision, efficiency, quality performance
Portable CNC system, small volume with light weight, easy to move, no occupying of a fixed space

4.Technical details

Production NameZNC-2300 heavy type fixed arm CNC flame Cutting MachineZNC-2300 heavy type fixed arm CNC flame Cutting Machine
Product ModelZNC-2300*4200ZNC-2300*6200
Input Voltage(option)220V /500-1000W/ 50Hz220V  /500-1000W/ 50Hz
Cross Beam Length(X axis)2300mm2300mm
Effective cutting width (X axis)2300mm2300mm
Effective cutting Length(Y axis)4200mm4200mm
(Rail can be lengthened according to user's demand)(Rail can be lengthened according to user's demand)
Longitudinal Rail Length(Y axis)5000mm7000mm
(Rail can be lengthened according to user's demand)(Rail can be lengthened according to user's demand)
Cutting ModeFlame only; Plasma only; Flame and PlasmaFlame only; Plasma only; Flame and Plasma
Drive ModeSingle-sideSingle-side
Drive MethodRack and pinion drive for X and Y axesRack and pinion drive for X and Y axes
Flame Cutting Thickness6~100mm6~100mm
Plasma Cutting Thickness1-60mm (according to the specification of plasma power source)1-60mm (according to the specification of plasma power source)
Cutting Speed10-3000mm/min10-3000mm/min
Moving Precision0.01mm per step0.01mm per step
Nesting Software (option)FastCAM PortableFastCAM Portable
Flame Cutting Gasacetylene or Propaneacetylene or Propane
Plasma cutting gasPressed air, Oxygen, N2Pressed air, Oxygen, N2
Marking ToolYesYes
Torch Height Controller (AUTO)Capacitive height control for flame cuttingCapacitive height control for flame cutting
Arc voltage height control for plasma cuttingArc voltage height control for plasma cutting
Feature1.stable performance ,reliable and durable.
2.The built-in graphics database, can store more than 1000 files to be cut.
3. Important parts such as motors, drives, solenoid valves etc. are used well-known brands.
4.Rotating beam design can reduce the production area.
5.Plasma ARC pressure regulator and crash-proof are optional by customer choice.
Note1.  Heavy one-piece steel rail.
2.  10.4-inch color display with FastCAM Standard Edition nesting software.
3.  Effective cutting length up to 7M.
4.  Reserved plasma cutting function interface, support for plasma cutting.
5.  Torch electronically controlled automatic lift, convenient and quick.


Q: What material could the machine cut?
A: all kinds of metal plate, includes carbon steel, stainless steel, aluminium, copper and Zinc etc.

Q: what's the lead time or delivery time?
A: 7 working days

Q: what's Warranty?
A: 12 months

Q: How is your after-sales service?
A: Consumable parts will be supplied in free, shipped to you with your purchased machine.

Q: Is there oversea engineer available?
A: Our engineer could service you 24 hours online by Skype, or on cellphone, and they can go to your country to
service you if necessary.

Basic Info

OEM: Yes
Color: Blue or as Per Customer′s Requirements
After Service: 12 Months Quality Assurance
Certificate: ISO, Ce, SGS, CCC
Application: Metal Cutting Machine
Max Cutting Thickness: 6~100mm
Plasma Interface: Yes
CNC Cutting System: Yes
Factory: Yes
Gas: Oxygen+Acetylene or Propane
Trademark: ACCURL
Transport Package: Wooden Box
Specification: standard size
Origin: China
HS Code: 8456909000
