3 ~ 7 meters rail span c and c plasma cutter , automatic cnc gas cutting machine

cnc flame cutting machine

Detailed Product Description


Model Number:GSII-PS2520-PMAX-105APlasma Power:Hypertherm Powermax105 USA
Gantry Type:TableEffective Cutting Area(Length):2700 X 20800mm
Traveling Speed:0-12000 Mm/minKeywords:CNC Flame Cutting Machine

Cnc flame cutting machine buy used 2700mm x 20800mm with high quality

Product Description

Specifications

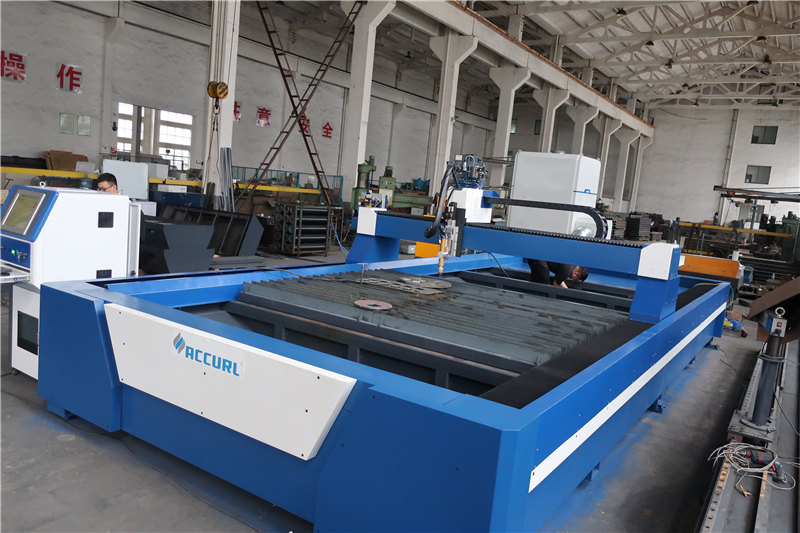

CNC plazma/flame cutting machine
1. gas cutting
2. plazma cutting machine, can cut different profile shape

AG series CNC plazma/flame cutting machines are the newly perfect machine style designed by Jinfeng company with many years' experiences in designing cutting machines. They have the advantages of beautiful looking, small inertia, good rigidity and stable moving. They have the different track span from 3 to 7 meters. The CNC control system is at customer's choice. These series machines have the highest performance and lowest price, which are widely applied to the different industries. For cutting of mild steel in steel structure, engineering construction and ship building.

1. Rail span: 3 ~ 7 meters
2. Rail length: cutting effective length plus 2 meters
3. Torch: Max. 4 torches
4. CNC controller: Fagor, Hypertherm, Burny
5. Flame cutting thickness: 6-150mm

6. For gas cutting

Product Features

1. Tailored track acquires high-intensity, high-speed and high-precision features.
2. Human computer interface design makes the machine easy to learn and operate, and have complete functions.
3. Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
4. Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
5. With two cutting modes: Flame Cutting & Plasma Cutting.
6. Chinese, English, French, and Portuguese are ready to use.
7. Can automatically memorize and restore when power is off.
8. Plasma THC ( torch height control) device function: By automatically adjust the height of the torches
according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,protect the torch form damage and prolong life span of the nozzles.
9. With status indication device.
10. With positioning functions of protection cover, proximity switch and dual-speed.
11. Compatibility of the domestic plasma and foreign-brand plasma.

STANDARD COMPONENTS

1. Make up of gas decompression valve and pressure gauge.Clear to check the whole machine pressure.

2. Adopt U71 heavy-duty rail by fine machining.

3. According to user’s requirement,assemble CNC flame single torch,power-spray scribe torch,stamping unit,plasma mechanical torch or linear

triple cutting torch,and also fit auto igniter and auto height controller.

4. To ensure the beam won’t deform,it is designed in welded square structure,tempered to eliminate mechanical stress,and then processed by precision machinery.It has high mechanical strength and good rigidity.High-precision and fine-grinded guide rail,gear wheel and gear rack in high steel quality are assembled on top of the beam.Therefore,the accuracy of latcral movement can be guaranteed.The transverse track is bolted on the beam for the convenience of replacement and adjustment.

COMPANY INTRODUCTION

1. More than 12 years experience for Hydraulic Press and 16 years for sheet metal machinery

2. Total Number of Employee : 455

3. Floor Area : 56,765m^2

4. New factory area : 61,321m^2

5. Whole factory is controlled by ERP-Enterprise Resource Plan

We are producing below ranges of machines:

1. CNC Press Brake

2. CNC Laser Cutter(Validation phase)

3. CNC Punch Press(Validation phase)

4. CNC Shears

5. Hydraulic Press

6. Pipe&Roller Bender

7. Iron Worker

8. Automatic Production line

Machine instruction

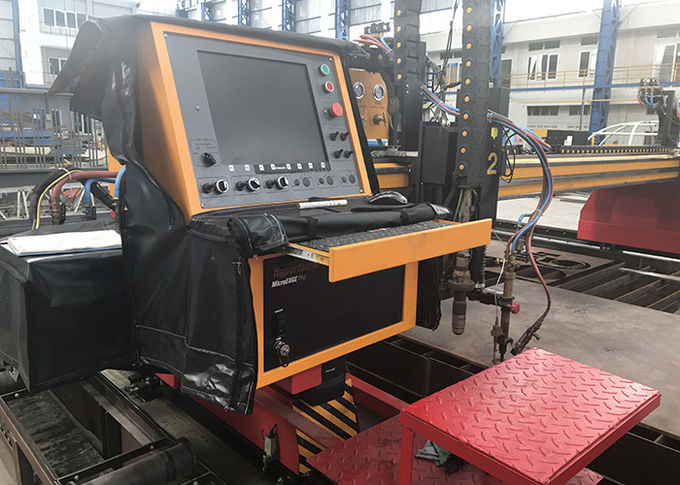

Portable numerical control flame/plasma cutting machines can be programmed to cut any plane shape parts composed of beeline and arc ,which are same as large gantry cutting machines . It is equipped with a 5.7 inch LED with dynamic and static graphical display .It is directly perceived and very easy to learn .It can be programmed to cutting parts directly , and also can be operated in computer translating instructions into a program file by CAD program , and then deducing it via U hardware .The standard positioning of this machine is flame cutting ,external hanging plasma cutter is also workable .

Technical specifications

TypeACCURL PS - 2520
Product NameCNC Flame Cutting Machine
Cutting Table 2700 x 20800 mm
Machine Width4750 min-1
Machine Lenght22200 mm
Machine Height2200 mm
Table Height750 mm
Table Width2700 mm
Table Lenght19200 mm
X Axis Stroke3300 mm
Y Axis Stroke20200 mm
Weight18000 kg
