low cost metal plates and pipes fiber laser cutter lm3015am3

low cost laser cutter

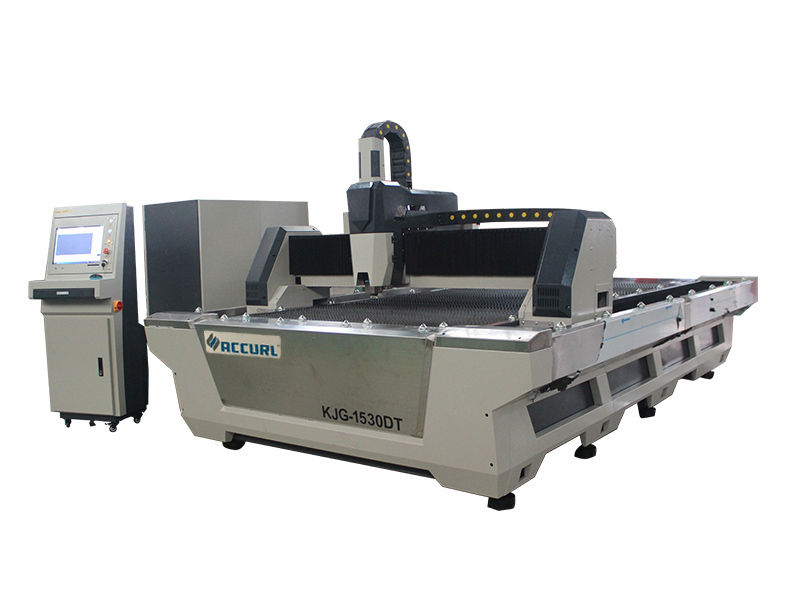

ACCURL3015AM3 metal plates and pipes fiber laser cutting machine
Processing Area3000mm*1500mm
Laser Power1500w/2000w/3000W/4000W/6000W
Positioning Accuracy±0.05mm/m
Repeated Positioning Accuracy±0.03mm
Maximum velocity of movement120m/min
TransmissionPrecise rack,dual-drive transmitting

Product Features of plates and pipe fiber laser cutting machine

1.stable and reliable light path system and control systm

2.Integrated design for the whole machine with left and right funnels as collectors to save space

3.Cutting metal sheets and metal pipes,cost-saving and high performance price ratio

Application Materials

Specially used for cutting 0.5-12mm carbon steel plates and pipes, 0.5-8mm stainless steel plates and pipes, galvanized steel plates and pipes, electrolytic zinc-coated steel sheets and pipes, 0.5-5mm aluminum, 0.5-4mm brass and various thin metal materials.

Basic Info
Model NO.: ACCURL3015AM3
Laser Technology: Fiber Laser
Model: Lm3015am3
Processing Area: 3000mm*1500mm
Laser Power: 1500W/2000W/3000W/4000W/6000W
Maximum Velocity of Movement: 120m/Min
Color: Blue-White
Positioning Accuracy: 0.05mm/M
Warranty: 2 Years
Trademark: ACCURL
Transport Package: Standard Packing
Specification: CE
Origin: China(Mainland)
HS Code: 8456110090
