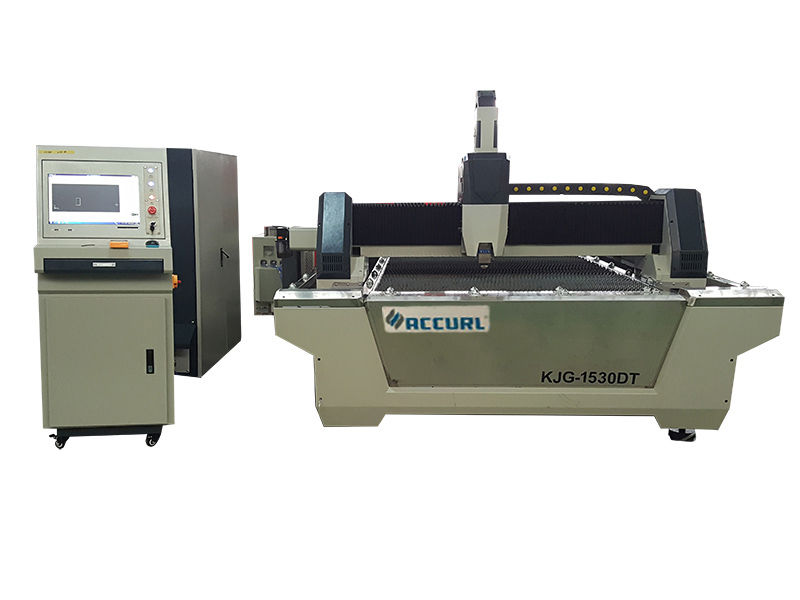

Fiber laser cutting machine ACCURL3015G is widely used in kitchen appliance,electrical control box ,mechanical equipment,electrical equipment,lighting hardware fittings,elevator manufacturing,auto parts ,hardware and metal processing.
1.Stable and reliable light path system and control system
2. Imported original fiber laser generator with great and stable performance to have lifespan over 100,000 hours
3. High cutting quality and efficiency with cutting speed up to 25m/min
4. Imported high performance reducer,gear and rack
Please let us know following informations
1.What kind of materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Model NO.: ACCURL3015G
Laser Technology: Fiber Laser
Working Area: 3000mm*1500mm
Fiber Laser Power: 300W/500W/750W/1000W/1200W/1500W
X Axis Stroke: 3000mm
Y Axis Stroke: 1500mm
Z Axis Stroke: 100mm
X/Y Position Accuracy: ±0.05mm
X/Y Reposition Accuracy: ±0.03mm/M
X/Y Axis Max Acceleration: 0.8g
Max Velocity of Movement: 80m/Min
Transport Package: Wooden Box
Origin: Shandong, China
HS Code: 8456100090
|Fiber Laser Power||300W/500W/750W/1000W/1200W/1500w|
|X/Y position accuracy||±0.05mm|
|X/Y Reposition Accuracy||±0.03mm/m|
|X/Y axis Max Acceleration||0.8G|
|Max Velocity of Movement||80m/min|
