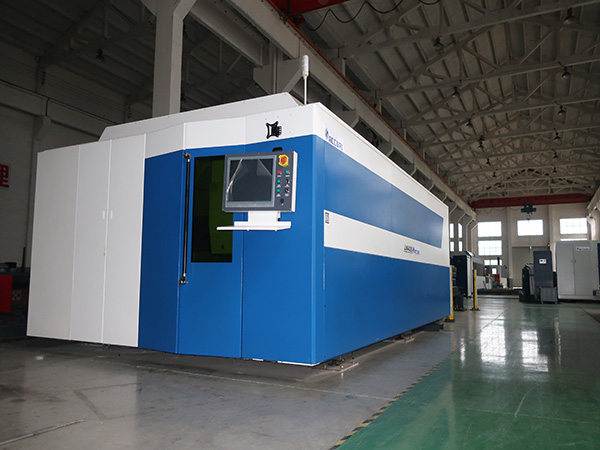

10-20mm carbon steel fiber laser cutting machine

10 20mm carbon steel fiber laser cutting machine

Product Application


Applications of fiber lasers cutting machine including telecommunications, spectroscopy, medicine, and directed energy weapons,Electric power, automobile manufacturing, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertisement board, car decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products and other industries.

Applicable material: stainles steel, carbon steel, mild steel, iron, galvanized sheet, titanim sheet, copper, aluminum etc.

The advantages of fiber lasers over other types include


Light is already coupled into a flexible fiber: The fact that the light is already in a fiber allows it to be easily delivered to a movable focusing element. This is important for laser cutting, welding, and folding of metals and polymers.

High output power: Fiber lasers can have active regions several kilometers long, and so can provide very high optical gain. They can support kilowatt levels of continuous output power because of the fiber's high surface area to volume ratio, which allows efficient cooling.

High optical quality: The fiber's waveguiding properties reduce or eliminate thermal distortion of the optical path, typically producing a diffraction-limited, high-quality optical beam.
Compact size: Fiber lasers are compact compared to rod or gas lasers of comparable power, because the fiber can be bent and coiled to save space.

Reliability: Fiber lasers exhibit high temperature and vibrational stability, extended lifetime, and maintenance-free turnkey operation.

High peak power and nanosecond pulses enable effective marking and engraving.
The additional power and better beam quality provide cleaner cut edges and faster cutting speeds.

Lower cost of ownership.
Fiber lasers are now being used to make high-performance surface-acoustic wave (SAW) devices. These lasers raise throughput and lower cost of ownership in comparison to older solid-state laser technology

SPECIFICATIONS FOR FIBER LASER CUTTING MACHINE
Working size
1300*2500mm
4 feet*8 feet
48"*96"
3000*1500mm
10 feet*5 feet
120"*60"
1200*1300mm
4 feet*4.3feet
48"*51.6"

Laser Power

500W Raycus
cut 3mm stainless steel max
cutting 6mm carbon steel max
750W Raycus
cut 4mm stainless steel max
cut 10mm carbon steel max
1000W Raycus
cut 5mm stainless steel max
cut 12mm carbon steel max

Main data

minimum line:0.15mm
auxiliary gas
oxygen, nitrogon
repositioning precision:0.02mm
Max moving speed
100m/min
voltage: 220V/380V/440V
max cutting speed
30m/min

Main Features


1) cleaning and precise cutting edge.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Most parts are international famous brand, guarantee machine precision and quality.

4) Strict investigation of machine

5) Heavy duty, long lifespan

Quick Details


Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0-20mm
Cutting Area: 1300*2500mm 1500*3000mm
Cutting Speed: 100m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Graphic Format Supported: AI, BMP, DST, DXF, DXP, PLT
Certification: CE, ISO
After-sales Service Provided: Engineers available to service machinery overseas
transmission: high precision ball screw or rack pinion
laser power: raycus 500W 750W 1000W or IPG 1000W
driving system: famous brand servo motor and driver
guide rail: taiwan high precision square rail
keyword: fiber laser cutting machine
volage power: 220W 3 phase or 380V 3 phase
control system and software: cypcut
cutting head: WSX cutting head
machine table: one or double optional
optional: cover, pipe cutting rotary
