gantry cnc profile plasma cutting machine

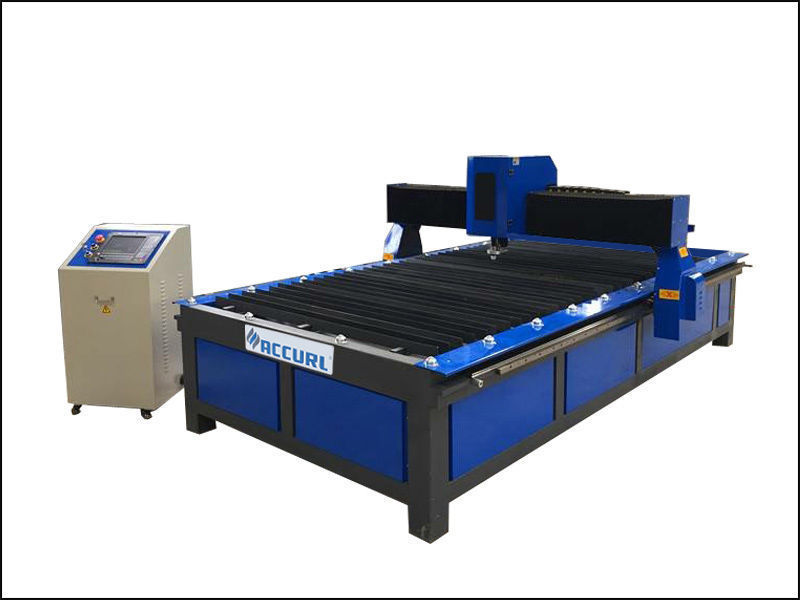

cnc plasma profile cutting machine

Application of gantry cnc plasma cutting machine

This product is an economic, easy-to-use operation and maintenance type CNC flame &plasma cutting machine which is devoted to many kinds of metal sheet cutting. To achieve a variety of metal materials by any graphic material cutting, after cutting the cut surface under normal circumstances does not require processing on the surface. With a high degree of automation, easy-to-use, high accuracy, high reliability and low price, operation, maintenance etc is very simple and widely applicable to the manufacture of machine tool, shipbuilding, pressure vessel, engineering and mining machinery, electric power, bridge building and steel industries etc.

Main feature of gantry cnc plasma cutting machine

01) Simple and easy to learn, and convenient interface.

02) Easy to manipulate and maintain.

03) Reasonable price with super quality and compact structure.

04) Increasing the anti-interference processing, maximum to avoid the failure rate.

05) 1G memory allows storing several documents.

06) Arc voltage height controller, power off memory function.

Specification of gantry cnc plasma cutting machine

1. Double flame cutting touch, we can configure plasma according to customers' requirement.
2. Stepper motor Bi-side Driving.
3. Electric height adjusting system.
4.Bundled TYPE3 software of France,flame cutting nozzle,flash disk.

Quick Details

Condition: New
Voltage: single phase 220V
Dimension(L*W*H): 5670*1320*1310mm
Weight: 1580KG
Certification: ISO CCC
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Cutting gas: Oxygen, Acetylene, Propane
Cutting thickness: flame 6-200mm
Cutting speed: 1-8000mm/min
effective cutting area: 6500*2500mm
transmission mode: USB/SD/RS232
Software Support: InteGNPS/Artcut6/Caxa/Auto CAD/Art CAM/Star CAM
Slotting compensation: Automatic or artificial set
Cutting precision: ±0.5 mm
Heave travel of cutting touch: Heave travel of cutting touch
Working power: AC220V-50HZ

Technical paramaters of gantry cnc plasma cutting machine

Physical dimension/length of guide3000×7000(mm)
Effective Cutting Area2500*6500(mm)
Cutting thicknessFlame: 6~200 (mm)
Software SupportInteGNPS/Artcut6/Caxa/Auto CAD/Art CAM
Working powerAC220V-50HZ
Cutting precision±0.5 mm
Image readyEnglish
Transmission modeUSB/SD/RS232
Slotting compensationAutomatic or artificial set
Cutting gasOxygen, Acetylene, Propane
Heave travel of cutting touch(mm)1-150mm
Flame Cutting rate50~700mm/min
Heave height of cutting touch≤200mm
Straight line repeat accuracy ±0.5mm/10m
Ambient temperature-5~45
Relative humidity<95% non-condensation
