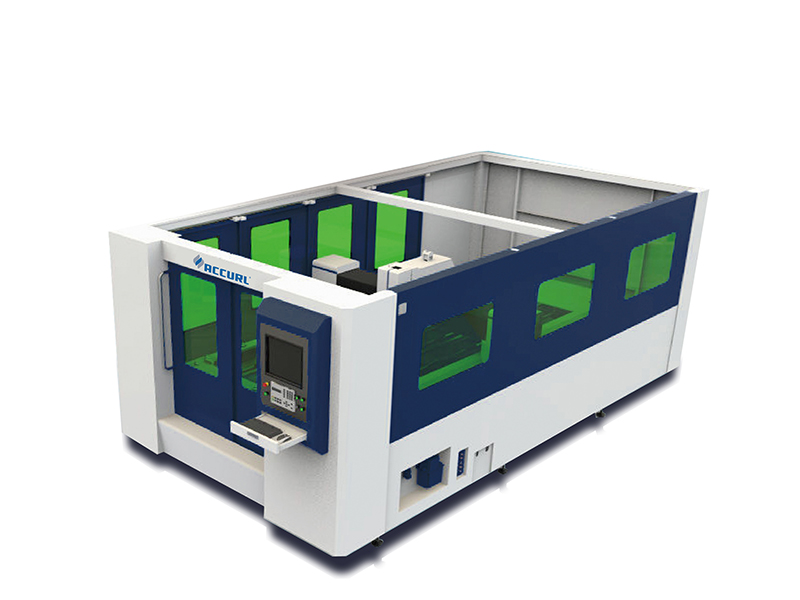

fiber laser metal cutting machine , steel cutting laser machine with tci cutting tables

laser sheet cutting machine

Detailed Product Description

Model Number:	KJG-1530DT-1000W ACCURL	Working Range:	1500x3000mm
Laser Type:	China Raycus Fiber YLS-1000w	Linear Guide:	Taiwan HIWIN
Table-driven System:	Japanese Yaskawa Servo Motor & Driving System	Keywords:	Fiber CNC Laser Tube Cutting Machine

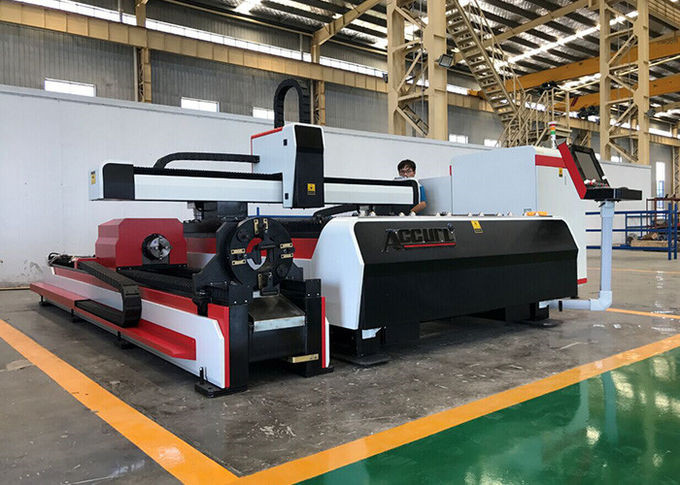

1000W Fiber CNC Laser Tube Cutting Machine for Metal Sheet of Stainless steel 4mm

Product Description

The Accurl@ Fiber Lasers bring you a cost effective, low-maintenance, low operating cost,environmentally friendly solution to your organization. We deliver a machine that providesquality cutting and tolerances with small productivity loss between jobs, equating to higher returnon investments. Our fiber laser cutting machines are developed and sold based on these criteria.

1. Manufactured by people who use their own machines.
2. The resonator comes with a 100,000 hour warranty from the manufacturer (IPG)
3. Higher cutting speeds possible
4. Dual interchangeable tables allow for faster loading and unloading, reducing downtime
5. Laser wavelength is one-tenth of a CO2 laser
6. Reduction in cutting variables or tribal knowledge
7. Fiber Laser is extremely efficient, equates to very low power consumption
8. Low cost of operation, energy cost reduced, no laser gases requied to produce beam
9. High cutting flexibility (Steel, Stainless Steel, Brass, Copper, Titanium, Aluminum, and more)

Main Features

The ACCURL@ Fiber Lasers bring a cost eᴀective, low-maintenance, low operating cost and environ-mentally friendly solution to your organization. Our ἀber laser machines provide quality cutting and tolerances with minimal productivity loss between jobs, equating to a higher re turn on investment.

1. Acceleration speed: 19,6 m/s2 (2G).
2. Maximum simultaneous positioning speed: 160m/min.
3. Precision: + - 0.05 mm.
4. Energy efficiency: greatly reduced power consumption.
5. Excellent cutting quality for fine thic kness and medium thickness sheet metals.
6. IPG Resonator. Power output from 1 kw to 6 kw .
7. Precitec light cutter cutting head with po wer output up to 2kw.
8. Precitec HP cutting head for po wer output of more than 2kw.
9. Fully enclosed and cabinned to ensur e máximum operator protection.
10. Effective high to low pressure gas exchange system.
11. Capacitative Sensor, high pressure cutting head.
12. TCI Cutting parameter tables.
13. Pre-cut film protector.
14. Automatic mechanized Nesting power output control function (edges, start-ups).
15. Automatic time and unit cost calculation function.

STANDARD EQUIPMENT

1. 3 Axis (X, Y, Z)

2. FAGOR 8055 CNC control unit

3. Servo Motor

4. Auto - focus cutting head

5. Laser Source

6. Chiller Unit

7. Clean-dry air system

8. Safety Cabinet

9. Automatic-Dual Shuttle Table

10. CAD/CAM Software

11. Conveyor

12. Warning Lamp

13. Nozzle Set

14. Nozzle cleaning and height calibration table

OPTIONAL EQUIPMENT

1. Linear motor technology

2. IPG 0.5 kW, 1 kW, 2 kW, 3 kW, 4 kW and 6 kW laser source options

3. Extraction unit.

4. Light protection barrier

COMPANY INTRODUCTION

More than 12 years experience for Hydraulic Press and 16 years for sheet metal machinery
1. Total Number of Employee : 455
2. Floor Area : 56,765m^2
3. New factory area : 61,321m^2
4. Whole factory is controlled by ERP-Enterprise Resource Plan

We are producing below ranges of machines
1. CNC Press Brake
2. CNC Laser Cutter(Validation phase)

3. CNC Punch Press(Validation phase)
4. CNC Shears
5. Hydraulic Press
6. Pipe&Roller Bender
7. Iron Worker
8. Automatic Production line

Product Application

1. Applicable Fields
Applicable for high-speed cutting on various metal plates or tubes such as S/S, carbon steel, galvanized sheet,electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials;
2. Widely used
Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.

SPECIFICATIONS

Model	KJG-1530 / IPG 1000w
Maximum cutting capacity	Mild steel	10mm
	Stainless steel	4mm
	Aluminyum	3mm
	Copper	2mm
Laser Power	YLR-1000Watt
Max running speed	40/min
Work piece dimensions	1500 x 3000mm
Rapid traverse (X and Y axis)	105 m/min
Acceleration	1.2G (12m/s2)
Absolute positioning accuracy	± 0.03 mm
Max. load capacity	1550 kg
Fume extractor	1000 m3/hour
Laser Cutting Head	RayTools BM110 from Switzerland
Feed rate	Programmable up to 30 m/min.
Applied Materials	Thin mild steel, Stainless steel, Aluminum, Copper plate
