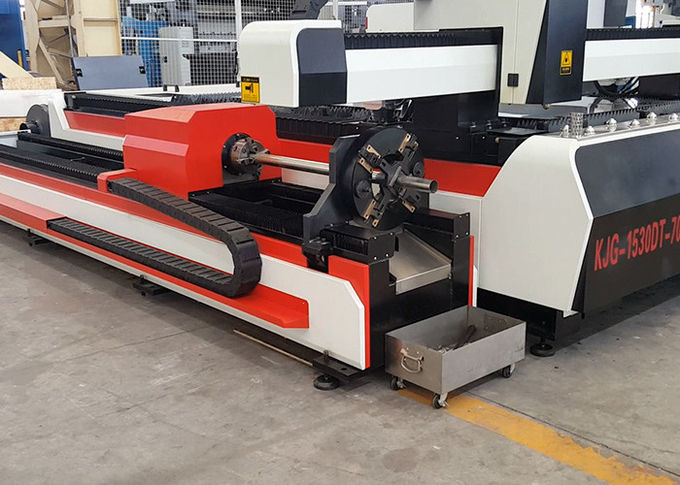

fully automatic cnc fiber laser tube cutting machine with dual interchangeable tables

Detailed Product Description

---

Model Number:	ECO-FIBER-1530-4KW ACCURL	Working Range:	1500x3000mm
Laser Type:	China Raycus Fiber YLS-4KW	Transmission:	Taiwan YYC Gear And Rack
Chiller:	S & A For Laser Source And Cutting Head	Keywords:	4KW Fiber Laser Tube Cutting Machine

4KW Automatic CNC Fiber Laser Pipe And Tube Cutting Machine for Sale

Product Description

The Accurl@ Fiber Lasers bring you a cost effective, low-maintenance, low operating cost,environmentally friendly solution to your organization. We deliver a machine that providesquality cutting and tolerances with small productivity loss between jobs, equating to higher returnon investments. Our fiber laser cutting machines are developed and sold based on these criteria.

1. Manufactured by people who use their own machines.
2. The resonator comes with a 100,000 hour warranty from the manufacturer (IPG)
3. Higher cutting speeds possible

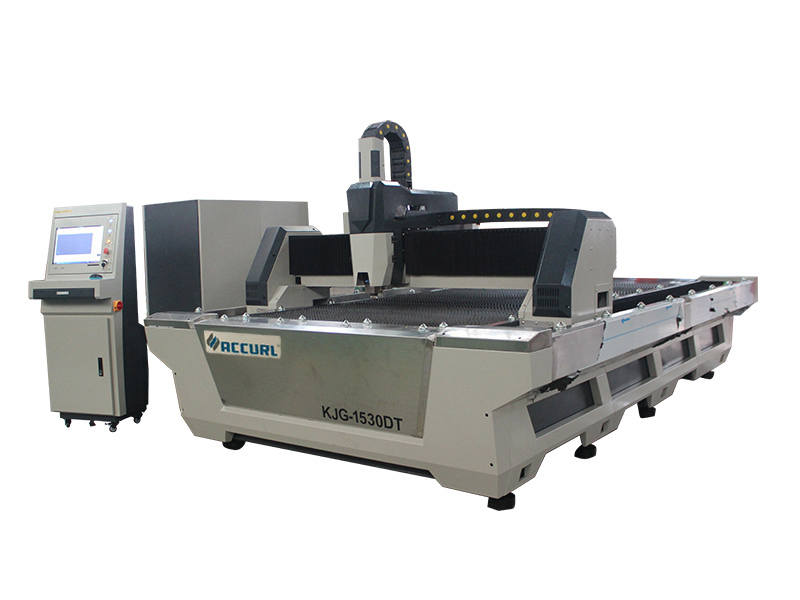

4. Dual interchangeable tables allow for faster loading and unloading, reducing downtime
5. Laser wavelength is one-tenth of a CO2 laser
6. Reduction in cutting variables or tribal knowledge
7. Fiber Laser is extremely efficient, equates to very low power consumption
8. Low cost of operation, energy cost reduced, no laser gases requied to produce beam
9. Created and tested in a 100,000 sq ft Research and Development facility operating 9 metal cutting fiber Lasers, cutting 24/7.

Main Features

1. Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.

2. High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.

3. Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

4. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.

5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

STANDARD EQUIPMENT

1. 3 Axis (X, Y, Z)

2. FAGOR 8055 CNC control unit

3. Servo Motor

4. Auto - focus cutting head

5. Laser Source

6. Chiller Unit

7. Clean-dry air system

8. Safety Cabinet

9. Automatic-Dual Shuttle Table

10. CAD/CAM Software

11. Conveyor

12. Warning Lamp

OPTIONAL EQUIPMENT

1. Linear motor technology

2. IPG 0.5 kW, 1 kW, 2 kW, 3 kW, 4 kW and 6 kW laser source options

3. Extraction unit.

4. Air conditioner for automation panel

5. Metalix, Almacam etc. CAD/CAM software

6. Nozzle changer

7. LCM (laser cut monitor) sensor for piercing control and cut-loss control

Our Service

Pre-Sales Service

1. Technical solution.

2. Online video authentication machine work.

3. Cutting samples provided by DHL

After-Sales Service

1. Supplier will provide detail manual for software, hardware

and trouble shooting, also supplier should give necessary

guidance online if Buyer need. If it’s necessary, Buyer

should send regular his technical staff to Supplier for technical training.

Packing & Delivery

1. Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.

2. All the spare parts of the machine were covered by soms softmaterials,mainly using pearl wool.

3. The outmost is wooben case with fixed formwork.

4. The botton of the wooden case has firm iron jack,covenient to hading and transport.

SPECIFICATIONS

Model	ECO-FIBER 3015 / 4KW
CNC Control Unit	FAGOR 8060 CNC System
X axis (Rack & Pinion)	3000 mm
Y axis (Rack & Pinion)	1500 mm
Z axis (Ball Screw)	100 mm
Maximum cutting capacity	Mild steel	25 mm
	Stainless steel	12 mm
	Aluminyum	10 mm
Work piece dimensions	1525 x 3050 mm
Rapid traverse (X and Y axis)	105 m/min
Acceleration	2.5G (25m/s2)
Vector speed	148 m/min
Absolute positioning accuracy	± 0.08 mm
Repeatability (X and Y axis)	± 0.03 mm
Max. load capacity	2450 kg
High Performance CNC System	FAGOR 8060 from Spain Brand
Laser power	IPG YLS-4 kW from Germany
High Performance Servo motor/drive	FAGOR from Spain Brand
Laser Cutting Head	PRECITEC from Germany
Motoreducer	STOBER from Germany
