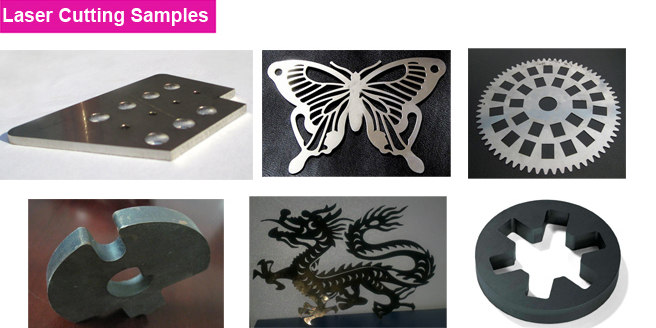

Especially suitable for contact-free cutting, hollowing or drilling of metal sheets in 0.5mm to 10mm, e.g., stainless steel, carbon steel, galvanized sheet, thin aluminum and thin copper etc. Fast and energy-efficient. Total system is high-return with low-investment.
Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
Flexibility and precision cutting of simple or complex parts .
Adopts imported world brand fiber laser/Life time over 100,000hrs .
Imported servo motor and gearing system ensure precision cutting .
High quality cut with no extra finishing required .
Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute .
Non contact cut which means no marks or contamination of the material .
It's able to cut virtually any sheet metal .
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.
It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.
|Laser type||Fiber Laser|
|Laser output power||700W||1000W|
|Max. speed(m/min)||120 m/min||120 m/min|
|Min line width||< 0.15mm||< 0.15mm|
|Driving System||Imported servo motor|
|Transiting System||Dual-drive & rack and pinion system|
|Operational Temp Range||10 ~ 40ºC|
|Cooling Mode||Water cooled|
|Warranty:||One year .|
|Outline size(mm)||4700mm×2520mm×1750mm (L×W×H)|
Cooling System: Water Cooling
Applicable Material: Metal
Laser Classification: Solid Laser
Laser Source Type: Ipg,Raycus or Maxphotonics Fiber
Laser Wavelength: 1070nm
Max. Speed: 120m/Min
Cutting Thickness: 0.2mm---5mm
Warranty: One Year
HS Code: 84561000
Application: Home Appliance, Textile Machinery, Aerospace Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Technical Class: Continuous Wave Laser
Structure Type: Gantry Type
Laser Technology: Laser Vapor Cutting
Laser Wattage: 500W,700W,1000W,2000W
Working Area: 3000X1500mm
Min Line Width: 0.15mm
Power Supply: 380V/50Hz
Weight: 5.5 T
Transport Package: Ply Wood Box
Origin: Anhui, China.
