best price metal steel fiber laser metal cutter

best laser cutter

Product Application


---ACCURL is the world famous fiber laser cutting machine manufacturers.
---ACCURL fiber laser cutting machine series is a typical representative processing performance to the leading and first-class level in abroad.

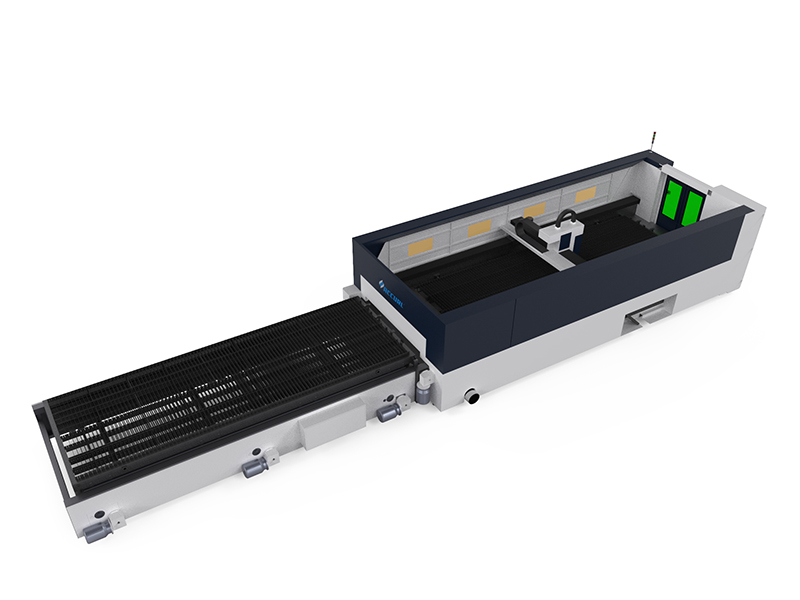

---500w fiber laser cutting machine is dual-drive mobile gantry structure with linear guide and gear rack drive system. Professional laser cutting CNC system ensures high integration, precise control and stable operation.
---The fiber cutting machine adopts Germany fiber laser technology and USA original fiber laser cutting head, Perfect Laser's fiber laser cutting machine can provide users with a powerful cutting capacity and efficiency, an ideal choice for 1-5mm thin sheet metal, carbon steel and mild steel processing.

Main Features


High efficiency: high-speed digital motion control by Germany technology system, especially for high-speed, high-precision laser cutting.
Integrated design: a 10% reduction of the volume of space, easier and cheaper for ocean and inland transportation.
Stable running: adopting gantry structure with synchronous bilateral gear and rack drive, and high-strength aluminum beams enhance its stability.
Low energy consumption: photoelectric conversion rate is up to 25-30% which can save energy and power. Electric power consumption for this type fiber cutting machine is only about 20%-30% of the traditional Co2 laser cutting machine.
High technology:full application of laser technology, mechanical technology, numerical control technology and other advanced technology.
Low maintenance cost: 500w fiber laser cutting machines doesn't need reflect lens, saving much maintenance cost. The key components lifespan can reach 100,000 hours with stable performance;

Basic Info


Application: Machinery & Hardware
Type for Cutting Machine: Laser Cutting Machine
Type for Fold-Bending Machine: CNC Fold-Bend Machine
Certification: Ce, ISO 9001:2000
Automation: Automatic
Condition: New
Laser Type: Fiber Laser
Working Area: 1500*3000mm
Transport Package: Exporting Standard Package
Specification: ISO/CE certificate
Origin: China
HS Code: 84561000

Laser Power500 watt
Laser SourceGerman IPG/ Sino-Tech / Raycus Fiber Laser Source
Laser TypeFiber Laser
Laser TechnologyGermany Technology
XYZ Working Area2500*1300*150mm3000*1500*150mm
Max. Cutting Thickness (mm)1-5mm carbon steel
Max. Cutting Speed5-20 Meters / Min (up to Materials)
Max. Location Speed60m/min
Laser Wavelength1070nm
Minimum Line Width≤0.1mm
Location Precision≤±0.05mm
Re-Location Precision±0.02mm
Max. Moving Speed100m/min
