1.Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2.High cutting speed: cutting speed is more than 20m/min
3.Stable running: adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours
4.High efficiency for photoelectric conversion : Compare with CO2 laser cutting machine ,fiber laser cutting machine have three times photoelectric conversion efficiency
5.Low cost: Save energy and protect enviroment.Low electric power consumption.
6.Low maintenance: fiber line transmission, no need reflect lens,save maintenance cost;
7.Easy operations: fiber line transmission, no adjustment of optical path;
Carbon steel , stainless steel , metal, aluminum,galvanized plate,alloy plate, rare metal. ....
|Max cutting range||1300*2500mm and 1500*3000mm|
|Structure||Welded steel, heavy lathe frame|
|Repeat positioning accuracy||±0.02mm|
|Total electric power consumed||<7.5KW|
|Min. Line Width||≤0.1mm|
|Driving and Transmission||Japan YASKAWA servo and gear rack|
|About laser head||Red point , auto focus, follow-up system|
|Continuous Working Time||24 hours|
|Natural life of laser||100000 hours|
|Laser wave length||10.6um|
|Minimum shaping character||Chinese character 2mm/ letter 1mm|
|Graphic Format Supported||BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF|
|Cooling||water chiller cooling|
|Weight of the Machine||3000 kg|

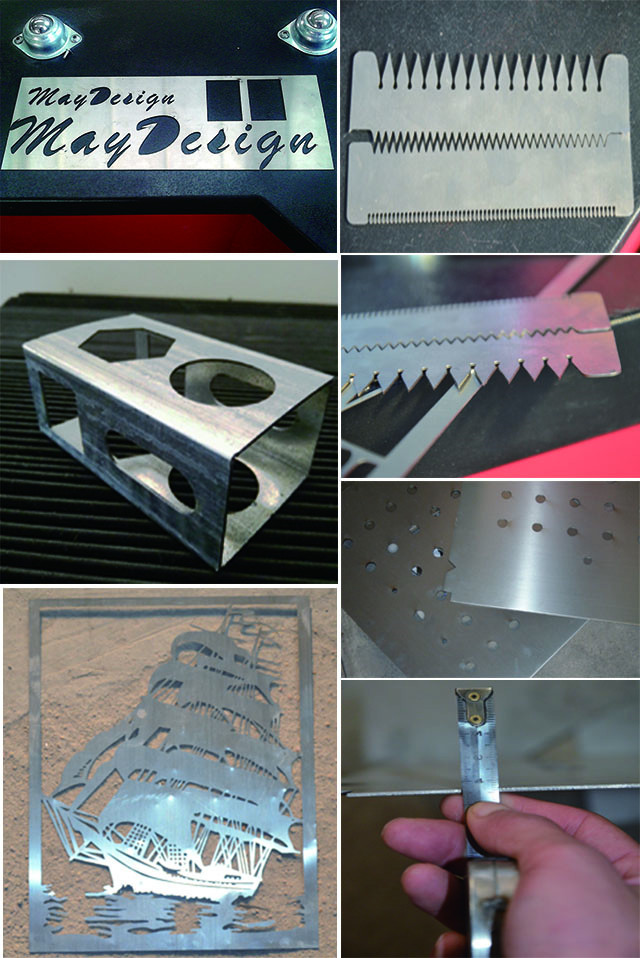

Samples for us
Q1: I need a fiber cutting machine, can you give me some suggestions?
Sure, but to suggest you the most suitable machine, I need to know further informations such as effective processing area.
Q2: which kind of materials can be processed on this machine?
Carbon steel , stainless steel , metal, aluminum,galvanized plate,alloy plate, rare metal,etc
Q3: Are you a factory or trading company?
We are the manufacturer and we have 14 years factory experience .And we welcome you to visit us.
Q4: How long is the delivery time?
For standard machines, it would be 15-20 days; For non-standard machines and customized machines according to client s specific requirements, it would be 20 to 30 days.
Q5: How should I pay for my order ?
You can do 30% prepayment at first, then we will start to make production. After finish production,shipping,then you can pay that 70% balance.
Application: Laser Cutting
Laser Type: Fiber Laser
Applicable Material: Metal, carbon metal ,stainless steel
Cutting Thickness: 0-30mm
Cutting Area: 1300*2500mm
Cutting Speed: 0-40000mm/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin: Anhui, China (Mainland)

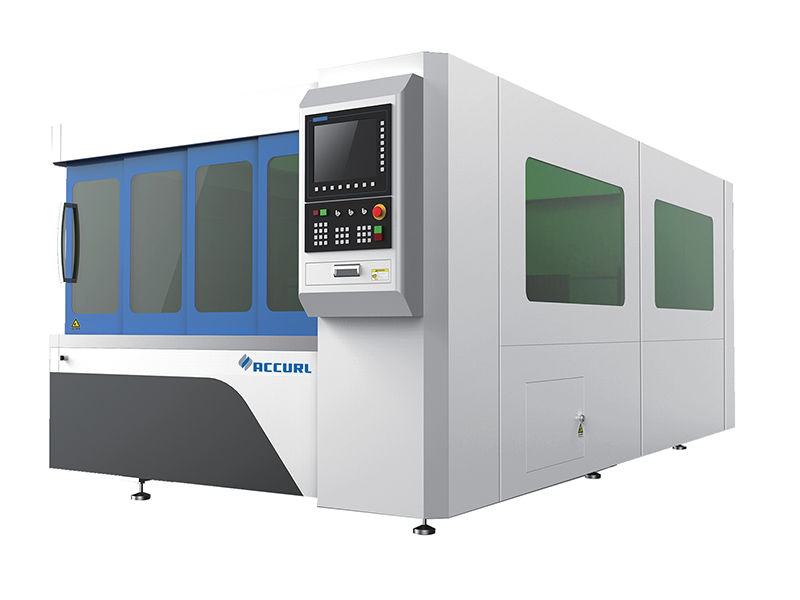

Brand Name: ACCURL
Model Number: CY-A1325 1530
Certification:CE, ISO, SGS
After-sales Service Provided: Engineers available to service machinery overseas
fiber laser cutting machine: fiber laser cutting machine
working area: 1300*2500mm
Guide way: Hiwin square rails
Laser power: 500W / 750w / 1000W / 2000W / 3000W
Motor: YASKAWA Servo motor and drivers from Japan
Structure: Welded steel, heavy lathe frame
