china metal pipe tube used cnc plasma cutting machine

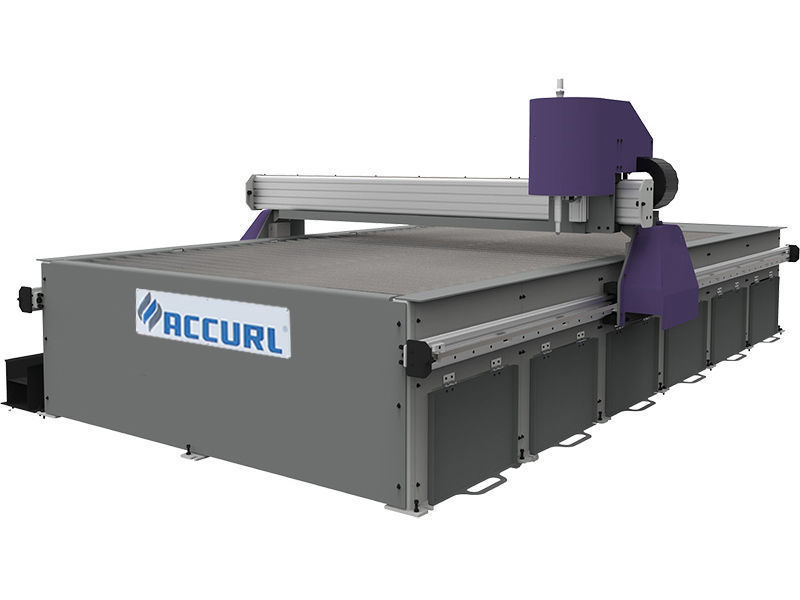

used plasma cutting machine

Features plasma cutting machine


1. The rack is fully welded, solid and reasonable, simple and durable.

2. Plasma cutting machine Y axis adopts double moters with double drivers. XYZ axis round raill, moving smoothly, with high accuracy. (Option: squar raill)

3. Independent research the water cooling system to ensure that the materials smooth deformation of incision.

4. High configuration. Automatic THC/ARC, stable performance, arc success rate of 99% or more.

5. Support Fastcam software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate

Parameters


X Y Drive System: Rack and Pinion Drive, Hiwin Linear Rails
Z Drive System: Ball Screw, Hiwin Linear Rails
Drive Mode: Stepper or Servo
Working Voltage: AC380V/50Hz
Positioning Accuracy: 0.03/300mm
Connecting Way: USB Interface
Plasma Power Source: Hypertherm, Huayuan
Cutting Thickness: 1-50 mm
Plasma Table: Knief Table Surface
Control System: Start Control System
Transport Package: Plywood Package
Specification: Depend On plasma type
HS Code: 8456901000

Working Area1300x2500mm/1500*3000mm/2000x3000mm
Working materialIron, steel, aluminum, sheets, galvanized sheets, titanium plates
Cutting thickness0.5-40mm
Cutting speed0-8000mm/min
Control systemBeijing Start control system(The updated controller)
Control softwareFastcam
Drive systemStepper /Servo
Input voltage220V / 380V - 50HZ
Plasma power63A(100/120/160/200A for option)
Files transferUSB interface
ArcUntouched arc  striking
File formatG-code
Plasma source Huayuan or Hypertherm(depend on you)

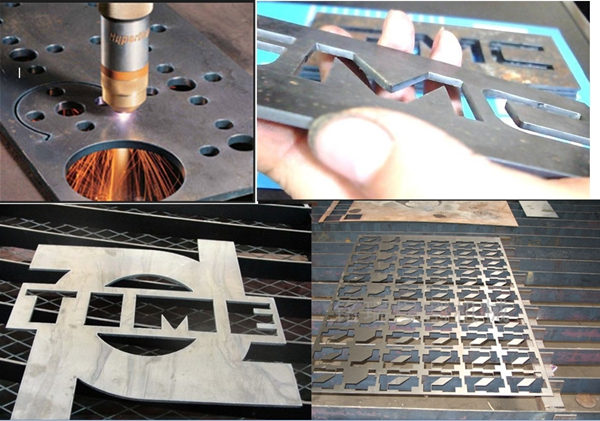

Application and Sample


CNC Plasma Cutting Machine is automatic and high efficiency cutting equipment. CNC Plasma Cutting Machine is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting.

Application and Sample

Package and Shipping


1. Lead time: Within 7-12 working days after receiving payment.

2. Packing: All machines are packed with standard inner plastic wrap and outer plywood case.

The inner package would be helping to tight all the small parts in the package. And the plywood is firm enough to protect the cnc machine during shipping.

After-sales Services


1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
