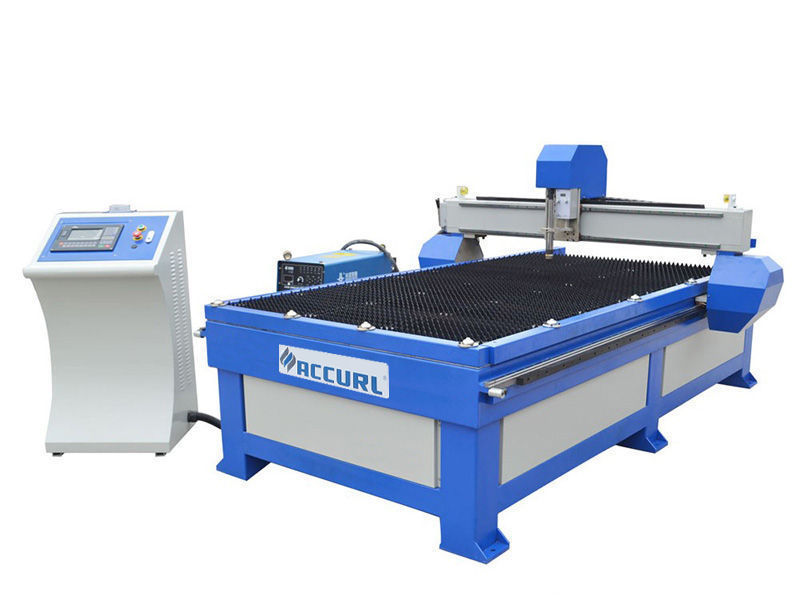

Main configuration of cnc plasma cutting machine
>THC HEIGHT CONTROLLER--The numerical control system with high disposes, the automatic striking arc, the performance is stable. Stuart cutting system panel, Auto Initial Height Sensing, Arc Voltage Divide etc, can cut different thickness, automatic height control, easy operation, high efficiency.
>Blade and saw working table for choose,support heavy metal with high stabilit.
> High precision square rail, and rack gear.
> Roll ball, convenient to feed.
> Huayuan plasma power supply(USA Hypertherm for optional),excellently performance,low failure rate, more secure.
> CUTTING SYSTEM/CONTROL SYSTEM PANEL--Starfire cutting system-SF-2100C/ Start cutting system/ FLMC-F2300A can be choose.
>Stepper motor (servo for optional) cooperate with precision machinery transmission system, faster and more stable, higher cutting efficiency.
Technical Date of cnc plasma cutting machine
Voltage: AC380/3P 50HZ
Rated Power: 8.5KW
Certification: CE, ISO
Warranty: One Year
After-sales Service Provided: Engineers available to service machinery overseas
key word: cnc plasma cutting machine
working area: 1300* 2500mm
control system: STARFIRE/ START/ FLMC-F2300A
height control: auto Torch height controller
plasma power: Hypertherm power or Chinese LGK power
plasma current: 65A, 85A, 105A or 63A, 100A 160A 200A
support software: Fastcam Nesting software
motor: standard step motor (servo motor optional)
Table-board: Steel blade saw tooth mesa
guide rail: imported square rail
|Repeat positioning accuracy||±0.05mm|
|Cutting thickness||0-30mm (depends on power supply)|
|Transmission model||Gear rack drive|
|Input voltage||3 phase 380V|
|Cutting system||Beijing Stuart cutting system (English)|
|Transmission system||X,Y Taiwan Hiwin high-precision,|
zero clearance increased linear guide+ rack
|Support software||Drawing software--CAD|
Nesting software--Australia fastcam software
Cutting path file--artcam, type3 etc
|Height control||arc voltage torch height controller|
|Guide way||Imported square rail|
|Table-board||Steel blade saw tooth mesa|
|Steel blade saw tooth mesa||Ray plug drives 860|
(Sino-us joint venture large drives)
|Working mode||Non-contact arc|
Plasma power supply of cnc plasma cutting machine
1.Plasma domestic Huayuan Power: -63A cutting thickness: 0-6mm // -100A cutting thickness: 0-10mm// -160A cutting thickness: 10-15mm// -200A cutting thickness: 15-30mm
2.US Haibao power:-65A cutting thickness: 0-12mm// -85A cutting thickness: 0-16mm// -105A cutting thickness: 0-22mm// -130A cutting thickness: 0-30mm
