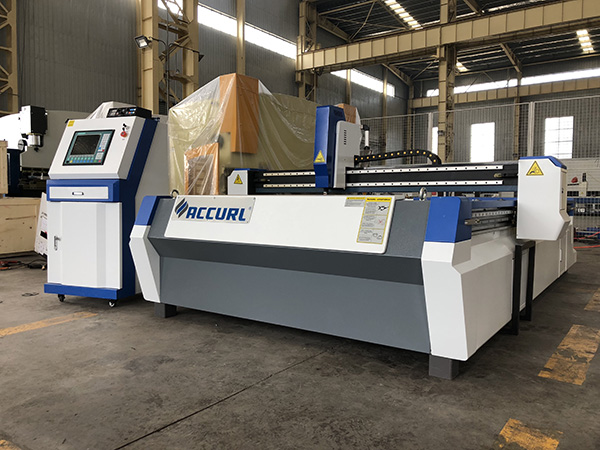

hardware table/bench/desktop cnc stainless steel cutting machine

Cnc Portable Plasma Flame Cutting Machine Table/bench/desktop In Hardware Cnc Stainless Steel Cutting Machine

Product Description


Machine ModelZC1530 (1212/1015/1325/1530/2030/2040/1550/2050/2060 is optional)
Working Area(length * width)1500*3000mm(1200*1200/1000*1500/1300*2500/1500*3000

/2000*3000/2000*4000/

1500*5000/2000*5000/2000*6000mm is optional)

Cutting methodPlasma Source& a flame cutting head
TableSawtooth Table(Blade table is optional)
Power45A (65A/85A/105A/125A/200A is optional)
Cutting Speed0-8000mm/min
Control SystemStart+THC Controller
FrameGeneral Duty Frame
Power Supply Requirement220V(110V/380V is optional)
Use of the EnvironmentClean and Dust Free or Dust less
Controlling SoftwareFastcam
MotorStepper Motor&Leadshine Driver
Files TransferUSB
Machine Power<2000W
Running Accuracy≤0.1mm
TransmissionGear Transmission
Power SupplierAmeican Hypertherm Power Supplier( China Huayuan Supplier is optional)

Machine Features:


1.Gantry structure, perfect bearing capability. The machines’ body is strong, rigid, high precision, reliable and durable.

2.Double cutting torch:plasma cutting torch and flame cutting torch(Oxygen),suitable for cutting steel board of different thickness.

3.Adopt well known plasma power Hypertherm, supply and domestic cutting torch.

4.Cutting edge is small and smooth ,without any drop outs,thickness for metal cutting is up to 50mm.

5. With Arc voltage Auto Height-adjusting Device, arcing success rate over 99% and can protect cutting torch from damage, increase cutting quality.

6.Adopts Imported high-precision Hiwin Linear guide rails, smooth movement, to ensure that the machine tools high-precision.

7.Drive gear and rack ,customized from professional manufacturer, is surface processed by cemented quenching, which can prolong machine’s using life.

8.Servo drive system is available,which with features of function detecting ,high running precision, wide speed range and short speed up time.

10. Excellent performance on cutting illuminated letters for advertising and channel letters on metal surface board
11. Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.

12. Support G code files of Wentai, ARTCAM, Type 3 software. Also support DXF files of AUTOCAD by transfer software. Control system supports U disk file transfer, easy operation

Application


1)Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, Military industrial, Wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment ect.

2)Aluminum, Copper, Titanium, Nickel, Iron, Galvanized sheet, White steel, Titanium plate, Carbon steel, Stainless steel, Alloy steel, Composite metal.

Quick Details


Condition: New
Place of Origin: Anhui, China (Mainland)
Model Number:1530
Voltage: 220V/380V
Rated Power: 7.5kw
Dimension(L*W*H): 3500*2000*800mm (L*W*H)
Weight: 3500KG
Certification: ISO
Warranty: 3 Years
After-sales Service Provided: Engineers available to service machinery overseas
Name: CNC plasma cutting machine
Color: Collocation color
Cutting mode: Oxy-fuel(flame)
Cutting thickness: 0-60mm
Control system: START Control System
Cutting speed: 0-15000 Mm/min
Cutting material: Metal .alloy Metal .aluminum
Machine type: cnc plasma cutter
Type: Bench type
