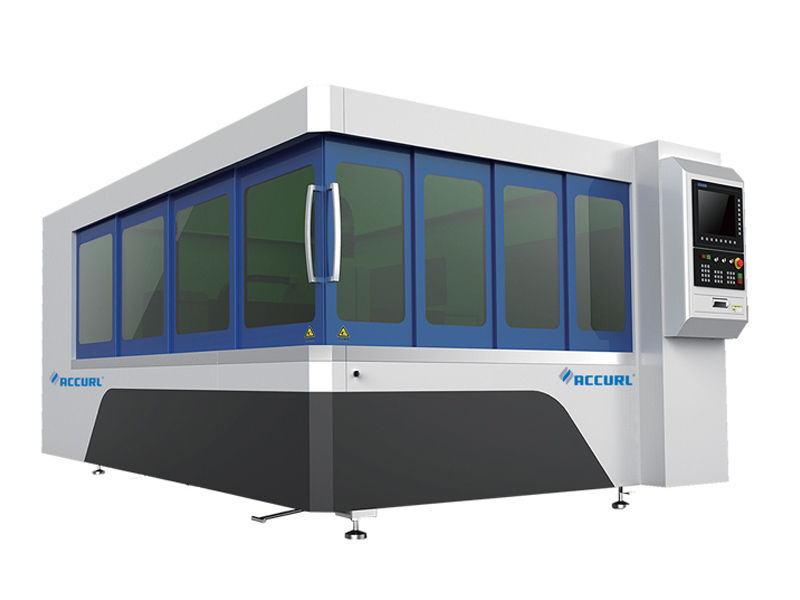

Characteristics of our laser cutting machine
1. High-rigidity heavy chassis, reducing the vibration generated during high-speed cutting greatly.
2. Gantry double-drive structure, German rack & pinion transmission system, improves the production efficiency.
3. High-performance cast aluminum guide rail, after finite element analysis, realizes highly accelerated speed circular arc cutting .
4. Open worktable, simple operation and small space occupation.
Technicial Parameters of the sheet metal fiber laser cutting machine price
|Laser type||Fiber laser generator|
|Transmission system||Gantry double-drive system|
|Maximum accelerated speed||0.8 G|
|Compatible formats||PLT,DXF,AI,CAD etc|
|Working environment||Temp:0-40℃,humidity: ≤ 80%, No condensation|
|General power||Around 20KW|
|Power supply||Triphase 380V/50Hz/60Hz|
1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.
3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.

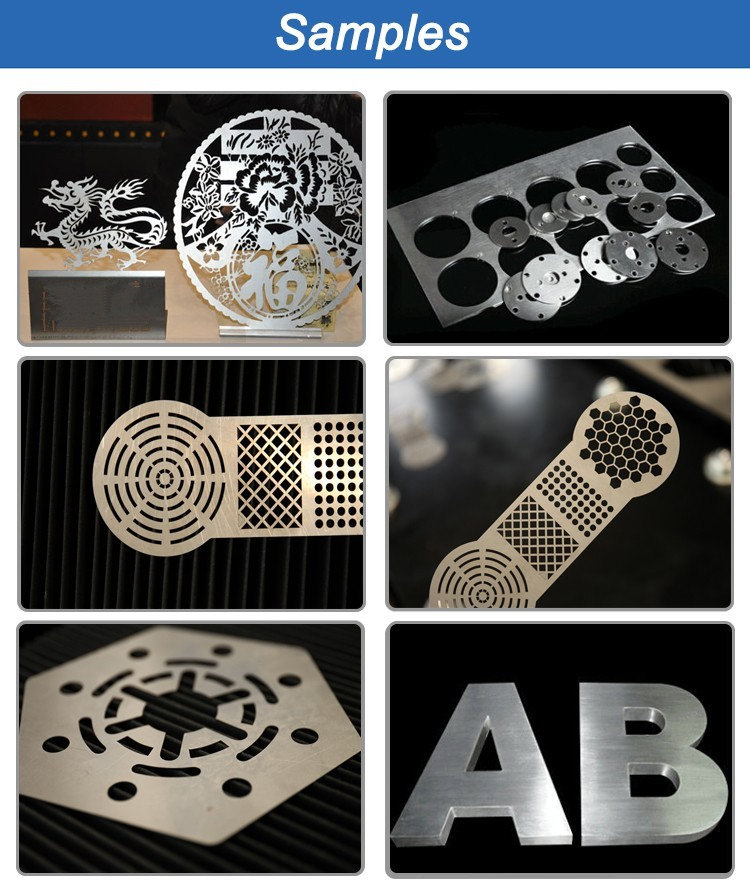

5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.
Packaging & Shipping
Standard exported wooden package for CNC Fiber laser metal cutting machine
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with f
Application: Laser Cutting
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0-30mm
Cutting Area: 2000*4000mm
Cutting Speed: 60-120m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut/Beckhoff/ PA8000
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
After-sales Service Provided: Engineers available to service machinery overseas
Laser power:500w 1000w 2000w 3000w Fiber laser
Warranty: 2 Years
Laser Head:Swiss Raytools/ America lasemech
Driving System: Japan Servo motors
Transmission type: Imported Linear railway/Rack and pinion
Control Method: Offline movement Control
Cooling Mode:: Water Cooling
Power supply: 380V/415V +/-10% 50-60Hz
Position Accurancy: ±0.03
Protection level: IP54
