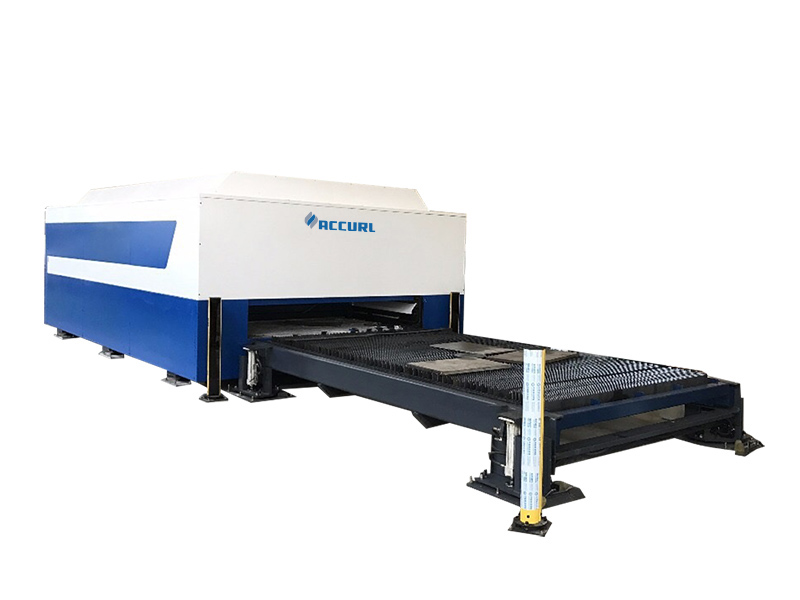

2017 hot sale large 3015 fiber laser cnc cutting machines for steel, iron, aluminum, brass sheet

cnc laser cutting machine video

Quick Details


Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0-30mm
Cutting Area: 1500*3000mm
Cutting Speed: 35m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Bodor Pro
Graphic Format Supported: AI, DXF, PLT
Certification: CE, ISO, SGS, FDA,BV,TUV
After-sales Service Provided: Engineers available to service machinery overseas
Laser power: 500W / 1000W /1500W/ 2000W / 3000W/4000W
Keyword: Laser Cutter
Laser Source: IPG/MAX
Warranty: 3 years
Size: 9950*3050*2200mm
Weight: 11000Kg
Working area: 1500*3000mm
Lifetime: More than 20 Years
Cooling: Water cooling
Continuous working time: 24 hours

Product Description


 Characteristics of our laser cutting machine

1. full protection cover

Environment friendly and Healthy Full closed protection improves using security; laser protection glass isolates laser radiation to human beings; automatic collection system of smokes and dusts is environment friendly; intelligent monitoring system reduces accident rate, making us enjoy beauty and health in cutting process.

2. two automatic exchange platforms system

time-saving and effort-reducing

Rapid exchanging between two platforms greatly improve work efficiency. Rack and pinion transmission system has better rigidity and higher accuracy, saving feeding time, making operation more efficient.

3. Appearance design

Surrounded by baking paint silver decoration,coordinated with diamond cutting tempered glass and alpine white sheet metal design, the international design of the machine is accepted by global consumer groups. The workplace is neat, orderly and space-saving.

4. cast iron bed

Integrally formed, reject splicingUsing flake graphite cast iron, the lowest tensile strength of which is 200MPa. High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Good casting and cutting performance. Excellent lubricity, corrosion resistance and dimensional stability. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.

5. Auto focus laser head

Free your hands, enjoy auto focus

(1) Auto focusApplicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.

(2) FreeFocal length is controlled by operating system. We don’t need to do manual regulation, which effectively avoids errors or faults caused by manual operation.

(3) FastIt can automatically adjust the most appropriate focal points in working process, greatly improving cutting speed;When replacing different materials or different thicknesses sheet, manual focus laser head needs to adjust focal length manually, very inefficient; auto focus laser head can read system storage parameters automatically, very efficient;

(4) AccuracyIncreasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.

(5) DurableBuilt-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses.Increasing collimation protective lens and focus protective lens, carefully protect key components.

6.Operating system display

Elegant appearance curveThe first one to use UI design in the world which lets display respond to processing table, making processing more intuitive. Elegant curves precisely fit machine body. Strong waterproof breathable system creates the best space, making operation more convenient. Diamond cutting process and HD plasma tempered glass make screen more exquisite and comfortable to use.

7.Cast aluminum crossbeam

Integral steel mold pressure casting, light, flexible and efficientAfter artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.

8. Bodor Por 2.0

Independent R&D operating system, perfectly combines high efficiency and simplicity with inclusivenessThe operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhancing the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.

9. functions

The heavy bed makes the equipment more stable in working, the light crossbeam makes it work faster; perfect industrial design is more in line with man-machine engineering; high quality electrical software control system gives equipment higher cutting precision. The machine owns more comfortable operation, more stable performance, more durable quality, higher cutting efficiency and wider application scope.Auxiliary feeding mechanismIntelligent travel protectionAutomatic lubrication systemGlobal real-time feedbackA new generation of safety following moduleIntelligent alarm systemAuxiliary gas low pressure alarm function

Working size1500*3000mm
Laser Power1000/1500/2000/3000/4000w
Machine size9950*3050*2200mm
Weight11000Kg
Max moving speed100m/min
Max Cutting Speed35m/min
Min Line Width0.1mm
Cutting Depth0.2-6mm
Cooling WayWater cooling
Driving and Transmission WayImported Servo Motor
Continuous Working Time24 hours
Positioning Accuracy0.03mm
Reposition Accuracy0.02mm

Details:


WIFI wireless control

To provide speedy service, we add WIFI function for our technician operates troubleshooting and ajustsd parameters remotely. Checking laser source parameters to analysis failure causesChecking cutting parameters to analysis and adjust new parameters

Bodor Genius laser head

Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.

Japan Yaskawa Servo Motor

Using the SoMove setup software: The SoMove setup software could do the control loop configuration. optimization,and maintenance, for the Lexium Easy 26 servo drives in automatic or manual mode by oscilloscope function,as same as other Schneider Electric drives.Equipped with SoMove software for easy setup and adjusting Driver Printed circuit board with coating protection,improve the reliability in the polluted environment

France Schneider Electronic Component

Circuit protection against short-circuit currents,Circuit protection against overload currents,Breaking and industrial disconnection as per standards IEC/EN 60947-2.Overvoltage resistance,High performance limitation,to fast closing independent of the speed of actuation of the toggle.

Japan SMC pneumatic components

Stepless control of air pressure proportional to an electrical signal.Serial communications specifications.Compact/lightweight (Integrated communication parts).

Laser Source

Optical fiber transmission, don't need to adjust the laser path. IPG, Maxphotonics fiber source. Wavelength range:1070~1090nm Beam quality TEM00 (M2<1.8) Forced air/Water cooling More than 100000 hours work-life of pumped

Auto Lubrication System

Electrical lubrication is a kind of Gear pump with rational construction , great performance , complete functions. Controlled by main machine system which could inspect the liquid level of the oil tank, the pressure of oil transportation , and setting the lubrication periodicity. Effective avoid rust and ensure the cutting accuracy .

Application Materials:


It is suitable for cutting carbon steel, stainless steel, aluminum, copper and alloy metal materials2.Application Industries: The equipment meets the parts processing requirements of most industries, working accuracy is stable. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.



Our Service


Pre-sale-service

*According to customers demands, provide relevant technical guidance.

*Assist customers to design and make laser cuttng solutions considering technical feasibility.

*Provide equipment demonstration for customers to investigate, make samples and do test etc.

After-Sales Service

*Bodor Laser provide 3 years warranty for all laser machines.

*Company can provide 24 hours service whenever customers have any questions or requests.

*Engineers are available to service customers oversers.

Packing and shipping


1)Packaging:Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.

2)Shipping:We cooperate with SINOTRANS company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.

3)Payment:We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance.

FAQ


Q1: I knew nothing about this machine, what kind of machine i should choose?

Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.

Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information

1)What materials do you cut? Carbon steel? Stainless steel? Aluminum? Brass? Or others?

2)What thickness of the materials?

3)What size of the materials?

We will suggest you the most suitable model according to your working requirements.
