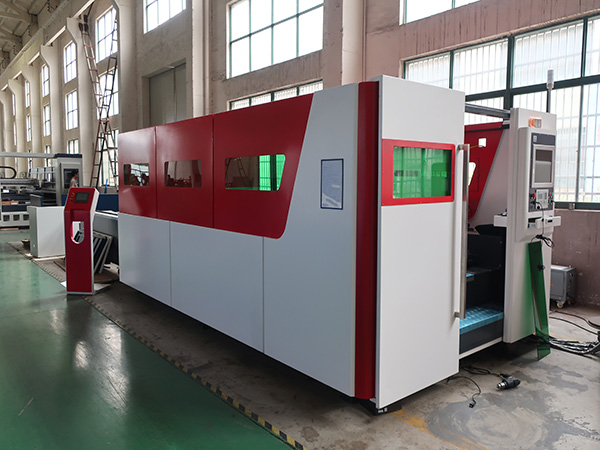

Table cutting machine for metal plate /stainless steel

TABLE CUTTING MACHINE FOR METAL PLATE, Table cutting machine for metal plate /stainless steel/Cutting Machine working on iron, aluminum, galvanized sheet, white sheet, titanium plate and other metal plates.

Main Parts Analysis / cnc cutting machine for metal plate


1):exquisite outside shell for wire cabinet

2: Controller system : china top-quality brand Starfire or Shanghai Fangling ,quite easy operation support English etc 12 different kind of language ./ plasma cutting machine for metal plate

3: Famoue brand Schneider electric compoments give you longer service life and reduce the fault.

Table-CNC-PLASMA-CUTTING-MACHINE

Model

WM-1530

WM-1540

WM-1560

WM-2030

WM-2040

WM-2060

Effective Cutting area

WIDTH*LENGTH(m)

1.5*3.0

1.5*4.0

1.5*6.0

2.0*3.0

2.0*4.0

2.0*6.0

Approximate

Machine table bench

WIDTH*LENGTH(m)

2.0*4.0

2.0*5.0

2.0*7.0

3.0*4.0

3.0*5.0

3.0*7.0

Machine Width:  1.3m,1.5m,1.8m,2.0m  Length:2.5~6m

Length:  0~10meter Customized

Main-Engine

Cutting model

Give priority to with plasma/  The flame can be selected

Cutting speed

No-load speed: 20m/min in a moment without shake

In-Loading speed: 0~15m/min with high stability

Cutting thickness

0~30mm with plasma / Specific cutting thickness depends on the plasma powe

Advice cutting <14mm metal; not advice support frame to bear too much weight

Drive mode

Double-side Drive

Drive motor

PANASONNIC SERVO MOTOR

Torch-Height-Control

Arc THC

SHENZHEN HYD/ SHANGHAI FANGLING

Track Rail

Precision

High-PRECISION LINEAR RAIL/  Taiwan HINWIN Famous brand

Precious linear round guide rail and linear guide rail

The linear tolerance of two guides on X axis is less than ±0.05mm;X and Y axis vertical tolerance is less than ±0.05mm;

Cutting-Torch

Model

plasma cut

Cutting Torch pcs

1 plasma

Power-Software-System

Plasma power source

HYPERTHERM;VICTOR;JHEKKBERG; ESAB-----LGK0~400Ampere Optional

Nesting software

FASTCAM

Cutting Table

INCLUDE

Dust-Clean device

OPTIOANL

Gas-guide tube

KOREA SAMSAN

Auto-system

BEIJING SATRFIRE

Manufacturer

Table CNC plasma cutting machine; CNC plasma cutting machine; plasma cutting machine for metal

Below recommend Brand and capacity power as the reference

USA Hyperthem 0-10mm= Max 65A ; 0-15mm= Max-85A ;0-20mm= Max105A;0-25mm =Max-125A; 0-35mm =Max 200A;German Victor:0-12mm= Cutmaster-40A; 0-15mm = Cutmaster-80A; 0-20mm = Cut-mast-120A;0-15mm= AutoCut-100A;0.5-25mm = AutoCut-200A; 0.5-25mm = AtuoCut-300AChina Huayuan: 0-5mm =LGK63A; 0-10mm =LGK100A; 10-15mm =LGK160A; 0-25mm=LGK200A; 0-30mm =LGK-300A; 0-35mm= LGK-400A

Quick Details


Application: Laser Cutting
Condition: New
Laser Type: Plasma
Applicable Material: Metal
Cutting Thickness: 0-50mm
Cutting Area: 1500*3000mm
Cutting Speed: 0-8000mm/min
CNC or Not: Yes
Cooling Mode: Air Cooling
Control Software: AutoCAD
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,normal using formats
Certification: CCC, CE, ISO
After-sales Service Provided: Engineers available to service machinery overseas
Product name: Table cnc plasma cutting machine
Keyword: Table cutting machine
Working area: L*W (3000*1500mm)
Cutting mode: By PLasma
Plasma power: LGK-0~400A optional
cutting thickness: 0~50mm
Color: Blue-white-yellow-black
