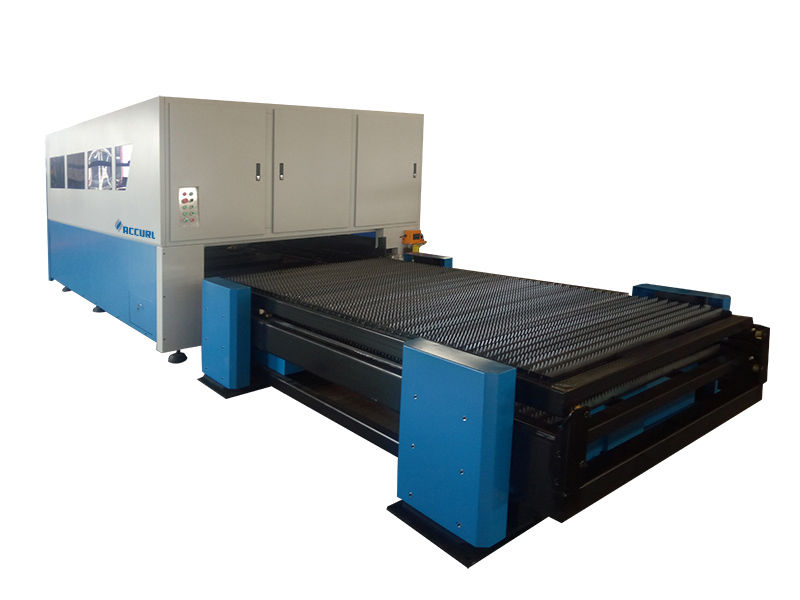

horse shaped stainless steel cookie cutter metal laser cutter 1000w

laser cutter

This metal fiber laser cutter suitable for stainless steel,carbon steel,silicon steel,aluminum alloy,titanium alloy,galvanized steel,pickle plate,aluminum-plating zinc plate,metallic copper and other metals.

This metal fiber laser cutter is a seal exchange platform fiber laser cutting machine,has high speed and efficiency.

1. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;

2. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;

3. High speed and efficiency, the speed of cutting metal sheets close to tens of meters;

4. The laser maintenance free;

5. The cutting edge looks perfect and the appearance is smooth and beautiful;

6. Imported the transmission mechanism and servo motor, and high cutting accuracy;

7. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easyoperation.

Quick Details

Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal, ss,iron,silicon steel,aluminum alloy,titanium
Cutting Thickness: Materials
Cutting Area: 1500*3000mm
Cutting Speed: 120m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Certification: CE, ISO, FDA IAF
After-sales Service Provided: Engineers available to service machinery overseas
Laser power: 300W 500W 750W 1000W 2000W
Weight: 7500kg
Table height: 850mm
Dimension: 8150*2825*2125mm
Repeated positioning: +/-0.03mm
Laser source: Germany IPG Fiber Laser
Gear rack: Germany Atlanta
Motor: Japan Serove Motor
Keyword: metal fiber laser cutter
Product name: cookie cutter metal laser cutter 100w with ce certification

Technical Parameters

Laser power500W/750W/1000W/2000W(optional)
Working size3000*1500mm
Repeated positioning precision± 0.03mm
Max. Running Speed120m/min
Max. Acceleration1.5G
Driving modePrecision Dual-drive Gear
Specified voltage and frequency380V 50Hz
Namehorse shaped stainless steel cookie cutter metal laser cutter 100w with ce certification

Mild steel SS400

Processing speed(m/min)7060504030231411
Auxiliary gasO2O2O2O2O2O2O2O2
Auxiliary gascosts(CNY/h)
Total operating costs (CNY/h)55.1555.1555.1555.1554.1252.855858

material: Stainless steel SUS 304

Processing speed m/min907050403525201814
Auxiliary gasN2N2N2N2N2N2N2N2N2
Auxiliary gascosts(CNY/h)51.5851.5851.5851.5860.7491.5291.5291.52143.1
Total operating costsCNY/h101.58101.58101.58101.58110.74141.52141.52141.52193.1

This horse shaped stainless steel cookie cutter metal laser cutter 100w with ce certification isusing worldwide first-class configuration below:

1.Swiss Raytool laser head,with automatic focus height follower.

2.IPG fiber laser generator.

3.Japan Yaskawa servo motor system.

4.Taiwan HIWIN linear guide rail.

5.Cypcut controlling system.

6.Germany Atlanta double driver rack gear.

7.Germany Neugart reducer.

1.Guarantee the stainless steel letters cutting machine metal fiber laser cutter for ss cs al for 3 years.

2.We can design the metal fiber laser cutte ras your requirement.

3.User-friendly English manual for metal fiber laser cutter rusing and maintaining.

4.Engineers available to service metal fiber laser cutter roverseas.
