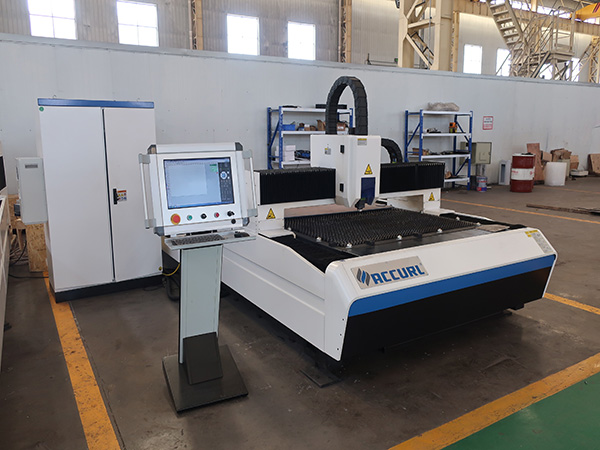

Double Driver 300 500 800 1KW 1200W sheet metal fiber laser cutting machine adopts the most sophisticated Germany IPG laser and double driver, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine.
Fiber Laser Metal Cutting application:
It has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, metal pipe,spectacle frame, etc, which have brought customers a high ratio of interest.
Glasses,jewelry,chassis and cabinet,lamp&lanterns,metal ware,hardware,precision machinery,auto parts, elevator,nameplate,advertisement,electronics,toys and other industries.
Fiber Laser Metal Cutting apilicaple material
Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium sheet and pipe.
|Laser Source||FL Fiber Laser Source|
|Laser Power Output||300W||500W||1000W|
|Laser wave length||1070nm|
Laser input power
|Min line width||≤0.1mm||≤0.1mm||≤0.125mm|
|Cutting depth(up to materials)||0.2--3mm||0.2--5mm||0.2-8mm|
|Driving way||Imported servo motor|
|Repeated Positioning Accuracy||±0.01mm|
|Vertical Length of X&Y Axis||0.03mm|
|Transmission Way||Gear Racking Transmission|
|Linear Length of X&Y Axis||0.02mm, 0.04mm|
|Z Axis Floating Accuracy||±0.05mm|
|Cooling way||Water cooling|
|Beam Quality||Base Mode|
|Environment temperature||5—35 °C|
|Power Supply||3 Phase/380V/50Hz|
1. World top imported fiber laser,stable performance,the service life of key parts can reach up to 100 hours.
2. Distinguished laser beam quality, which made cutting line more precise,working efficiency higher,processing quality better.
3. Adopt fully enclosed constant temperature laser working enviroment, makig sure the stable work more effective.
4. Particular corner energy following technology,making the cutting effect of sharp corner more.
5. Owned the Japaness advanced cutting head controlling technology, and the automatic failure alarming protective display function for cutting head, using more safely, more convenient for adjustment, an cutting more.
6. Particular punching gas controlling technology, solving punching problem for thick plate.
7. Equiped with high precision, high responsive driver, which is suitable for fast precision cutting.
8. Equiped with automatic fuel loading system, which let the machine tool running more stable.
Guarantee and after-sale service
a) Guarantee 1 year for the whole machine.
b) Providing around-the-clock professional service to customers, any call for technical help will be handled in 24 hours.
c) International after service department, and our engineers can speak English well, which make communication easy
d) Free training, free maintenance and free technical support within warranty period
e) We offer life-long free service in technical upgrading.
1.Q: Are you a factory or trading company?
A:We are a manufacturer with import&export license
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in maanshan City, Anhui Province, China, about 4 hours from Nanjing by fast train.All our client,from home or abroad, are warmly welcome to visit us!
3.Q: Can you do OEM?
A: Yes, we can do OEM products.
It's no problem.
4.Q:How can I get some samples?
A:1,We are honored to offer you samples. New clients are expected to pay for the courier
cost, the samples are free for you, this charge will be deducted from the payment for formal order.
2,Regarding the courier cost: you can arrange a RPI (remote pick-up) service upon Fedex,
UPS, DHL, TNT, etc. to have the samples collected; or inform us your DHL collection account.Then you can pay the freight direct to your local carrier company.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority? Huahai people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
