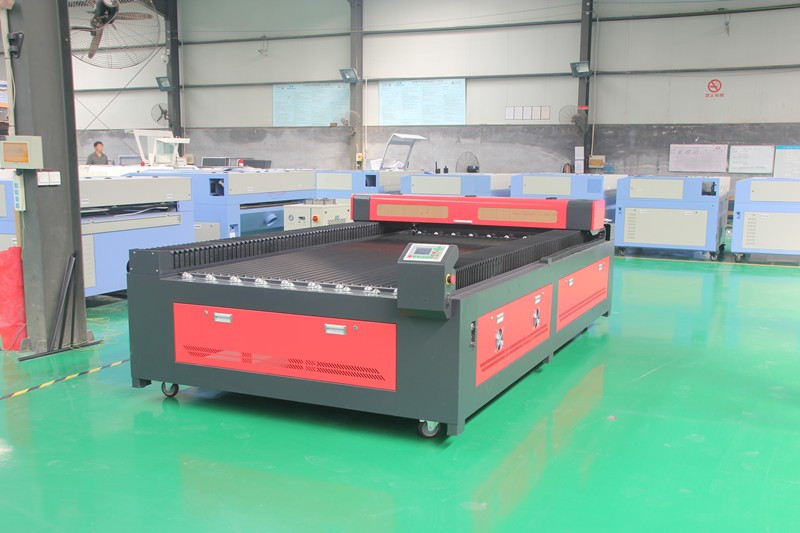

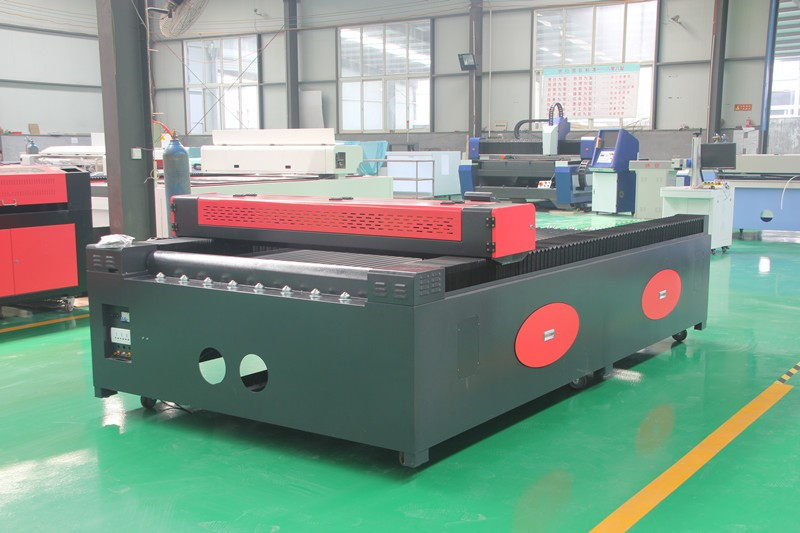

CO2 Laser Cutting Machine
2,CNC laser cut engrave
Muti-Function:Cut & Engrave
CO2 laser cutting machine applied to fine cut /engrave/hollow out on many different type of nonmetallic materialswith intricate shapes,graphics,text and logos
|Model||SF1326 laser cutting machine|
|Working area||1300x2600 (mm)|
|Laser power||80W, 100W, 130W|
|Laser Type||Sealed-off CO2 laser tube|
|Work platforms||knives countertops|
|≤ 600mm / s|
|Positioning accuracy||± 0.05mm|
|Graphic format supported||BMP, PLT, DST, AI, DXF, etc.|
|Cooling||forced water cooling and protection system|
|Power supply||AC220 ± 10%, 50 ~ 60Hz, 10A max|
|Working temperature||0 ~ 45 ℃|
|Operating Humidity||5% ~ 95% non-condensing|
|Drive motor||Stepper (Optional servo)|
|Machine size||3480x1880x950 (mm)|
Features of low cost plastic laser cutting machine
1 , using international advanced DSP control system with continuous , fast curve cutting function and the function of the shortest path optimization process , greatly improving the work efficiency. For attenuation compensation process to ensure consistent results throughout the processing format .
2 , full support for CAD, CORELDRAW, PHOTOSHOP and other design software , human-machine interface is friendly, close to the industry site needs
3 , the product R & D and manufacturing processes - using a machine -level stable solid frame, ensuring stability and accuracy during fast motion ; transmission adopts imported linear guide and precision gear , to ensure accuracy.
4 , the working platform using specially treated easily replaceable knives or cellular platform lightweight , easy to maintain .
5 , to achieve a large-format cutting or engraving opening film processing needs , to meet a variety of conventional models sheet metal processing needs.
6 , the optical path stable design , industrial water-cooled machine when equipped to ensure large format cutting, countertop laser power output for each position is consistent , fast and efficient, stable quality .
7 , multi-document features: The equipment can store up to 256 job file , in the case of completely out of the computer , the user can select a file on the engraving machine, easily 256 different products of mass production .
Industry: advertising, models, gifts, furniture and other industries
Application materials: acrylic, MDF, glass, wood plates, sponges, glass and so on.
Typical case: the word crystal cutting, cutting sheet metal furniture, MDF photo frame cutting, cutting, and other architectural models
Application: Laser Cutting
Laser Type: CO2
Applicable Material: Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Thickness: 0-30mm acrylic, 15mm MDF
Cutting Area: 1300*2600mm
Cutting Speed:0-10000 mm/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Ruida CAM
Graphic Format Supported: AI, BMP, DST, DXF, DXP, PLT
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: SF1326 low cost plastic laser cutting machine
Certification: CE, GS, ISO
After-sales Service Provided: Engineers available to service machinery overseas
Model: SF1326 low cost plastic laser cutting machine
Working table: blade and honemycomb
Cooling mode: water chiller and protection system
Engraving speed: 0-60000 mm/min
Resolution rate: ±0.05mm
Controlling Software: DSP control system
Compatible software: CorelDraw,AutoCAD,Photoshop
Driving system: Stepper
Working voltage: AC 110-200V±10%,50-60HZ
Working Tempretature: 0-45℃
