It’s mainly for automatically lofting and cutting the deformed workpiece.You can select a drawing from the new version of CAM-DUCT and input dimensions and choose a way of connection,then the software will start calculating,composing,jacking and cutting automatically according to your requirements.
1.Vertical control cabinet with 10 inch touch screen(15 inch screen is optional)
2.New version of CAM-DUCT software from Hypertherm of United States and encrypting Chinese version.
3.Original generator of Hypertherm of United States or homemade generator of Huayuan (economy version).
The machine adopts the latest CAM-DUCT software from Auto Desk company and the software combines technology,data procedure with management and meets cutting requirements of duct workplace by using pre-designed standard duct drawings and parameter settings.The software is easy to learn and operate because it only requires machine dimensions to develop an unfolded view of deformed duct automatically.
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: 1500*4000 plasma GI sheet cutting machine
Rated Power: 3KW
Certification: CE ISO
Warranty: 2 years
After-sales Service Provided: Engineers available to service machinery overseas

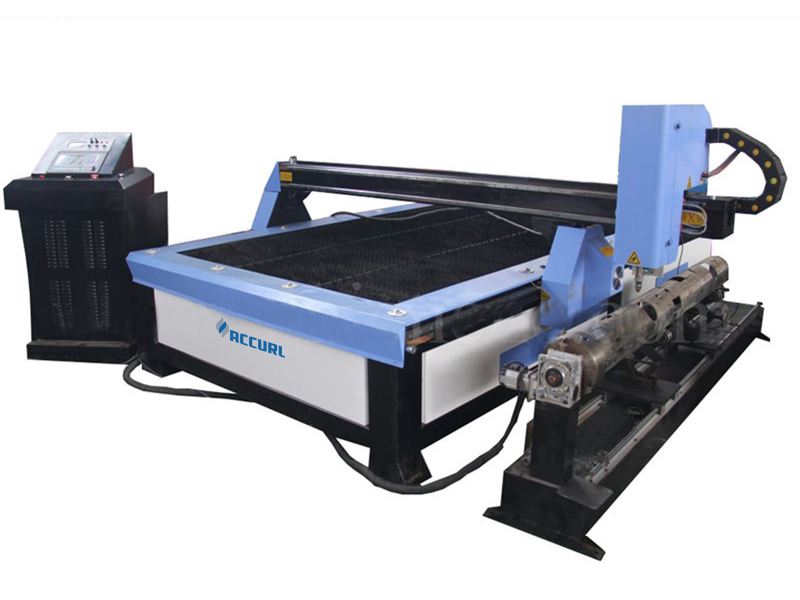

Product name: plasma GI sheet cutting machine
Control system: SF-2012AH - Beijing
Cutting thickness: 0-3 mm
cutting area: 1500*40000
Cutting speed: 0-8000mm/min
Plasma current: 63 A
File transfer mode: USB
Peicision: 0.05 mm
Dimension: 4800*2300*1350 mm
