china manufacturer full automatic cnc pipe cold cutting machine

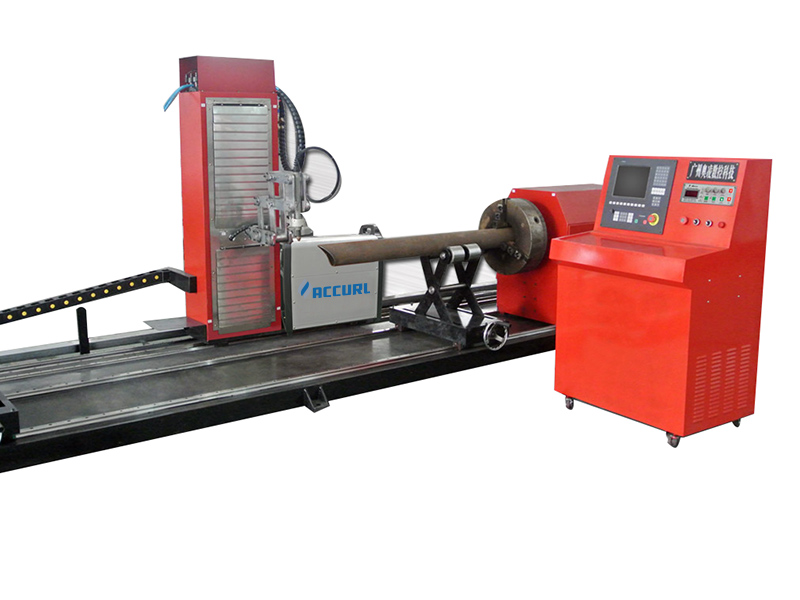

pipe cutting machine manufacturers

Technical parameters


Technical parametersMC355CNCMC425CNC
Sawing RangeRound pipeΦ120 mmΦ150 mm
Sqauare pipe100×100mm120×120mm
Rectangle pipe130×60mm160×70mm
Solid round pipeΦ40mmΦ50mm
Solid square pipe30x30mm50x50mm
Available Saw Blade Size300/315/350/400mm300/315/350/400/450mm
Hydraulic pump motor4.0KW4.0KW
Oil pressure(hydraulic)4MPa4MPa
Feeding servo motor power1.0kw1.0kw
Feeding length0-1000mm (Can be customized)0-1000mm (Can be customized)
Machine weight1200KG1600KG
Size2200×1100×2000mm2200×1400×2200mm

Main features


1.Mitsubishi servomotor-driven in feed, PLC unit control, make the feeding accurate and steady.
2.Imported hydraulic system, cutting powerful and the saw blade durable.
3.Linear Guide Raids with lube and vertical slideway cutting make the cutting steady and accurate.
4.Separated control of cutting and clamping, special-designed clamping method make the clamping deformation very little, especially suitable for thin pipes and stainless steel pipes.
5.Robust design ensures low vibration, low noise and long-time working.
6.Automatic water cooling system makes the cutting surface smooth and of little flash and strain, also makes the saw blade long-time use.
7.The cutting scraps are treated together and the maintance is easy.
8.Easy to operate. Extremely powerful functions makes it ideal for small lot flexible cutting requirements.
9.Human/machine interface control provides user friendly operations.
10.Touch sensing screen. Numerically controlled, provides high cutting accuracy.
11.Using for  automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.
