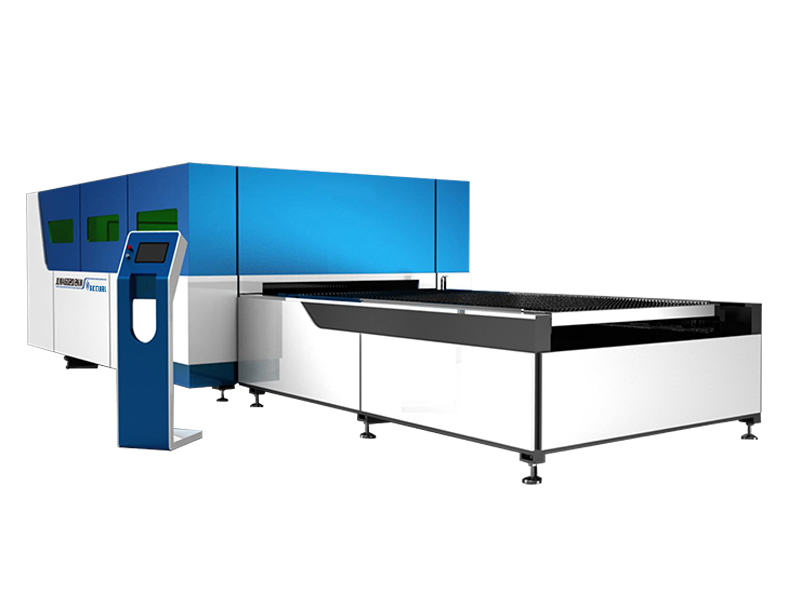

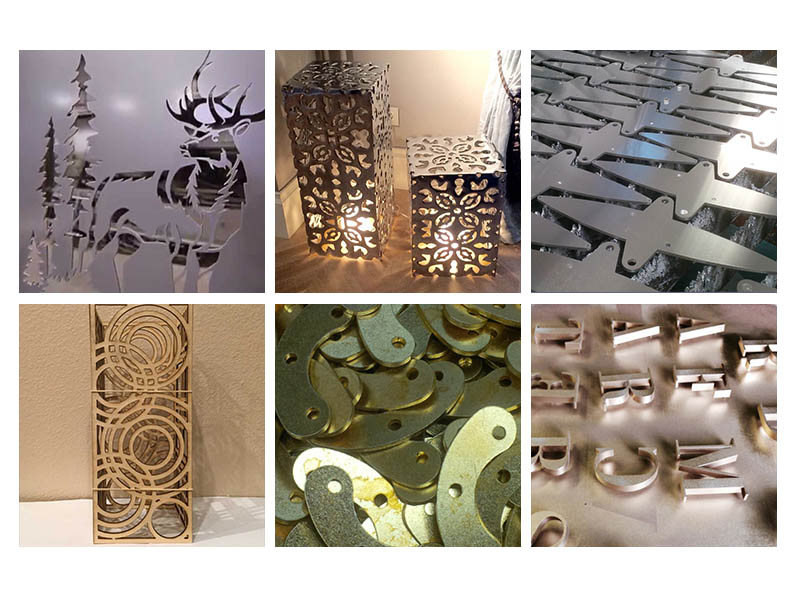

High power fiber laser cutter for Metal projects
Cutting capacity for different power fiber Laser cutter:
| Material | Thickness | Auxiliary gas | |
| 500W Machine | Carbon steel | ≤6mm Maximum | Oxygen |
| Stainless steel | ≤3mm Maximum | Nitrogen | |
| ≤3mm Maximum | Oxygen | ||
| Galvanized Sheet | ≤3mm Maximum | Oxygen | |
| Copper | ≤2mm Maximum | Oxygen | |
| Aluminum | ≤2mm Maximum | Oxygen | |
| Material | Thickness | Auxiliary gas | |
| 750W machine(Same effect with IPG 700w) | Carbon steel | ≤10mm Maximum | Oxygen |
| Stainless steel | ≤5mm Maximum | Nitrogen | |
| ≤5mm Maximum | Oxygen | ||
| Galvanized Sheet | ≤4mm Maximum | Oxygen | |
| Copper | ≤2mm Maximum | Oxygen | |
| Aluminum | ≤3mm Maximum | Oxygen | |
| Material | Thickness | Auxiliary gas | |
| 1200W machine(Same effect with IPG 1000w) | Carbon steel | ≤14mm Maximum | Oxygen |
| Stainless steel | ≤6mm Maximum | Nitrogen | |
| ≤6mm Maximum | Oxygen | ||
| Galvanized Sheet | ≤6mm Maximum | Oxygen | |
| Copper | ≤3mm Maximum | Oxygen | |
| Aluminum | ≤4mm Maximum | Oxygen | |
| Material | Thickness | Auxiliary gas | |
| 2000W machine | Carbon steel | ≤18mm Maximum | Oxygen |
| Stainless steel | ≤8mm Maximum | Nitrogen | |
| ≤8mm Maximum | Oxygen | ||
| Galvanized Sheet | ≤8mm Maximum | Oxygen | |
| Copper | ≤5mm Maximum | Oxygen | |
| Aluminum | ≤5mm Maximum | Oxygen | |
| Material | Thickness | Auxiliary gas | |
| 3000W machine | Carbon steel | ≤20mm Maximum | Oxygen |
| Stainless steel | ≤10mm Maximum | Nitrogen | |
| ≤10mm Maximum | Oxygen | ||
| Galvanized Sheet | ≤8mm Maximum | Oxygen | |
| Copper | ≤6mm Maximum | Oxygen | |
| Aluminum | ≤8mm Maximum | Oxygen | |
| Material | Thickness | Auxiliary gas | |
| 4000W machine | Carbon steel | ≤25mm Maximum | Oxygen |
| Stainless steel | ≤12mm Maximum | Nitrogen | |
| ≤12mm Maximum | Oxygen | ||
| Galvanized Sheet | ≤8mm Maximum | Oxygen | |
| Copper | ≤8mm Maximum | Oxygen | |
| Aluminum | ≤8mm Maximum | Oxygen |
